NCP508SQ33T1GEVB:NCP507 3.3V EVAL BOARD
The NCP508 is a 50 mA low noise voltage regulator, designed to exhibit fast turn on time and high ripple rejection. Each device contains a voltage reference unit, an error amplifier, a PMOS power transistor, resistors for setting output voltage, current limit, and temperature limit protection circuits.
特性
- Very Low Noise at 39 Vrms without a Bypass Capacitor
- High Ripple Rejection of 70 dB at 1 kHz
- Low Dropout Voltage of 140 mV (typ) at 30 mA
|

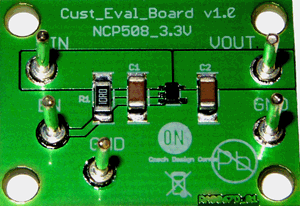

NCP508SQ33T1GEVB 实物图
|
评估板信息
| 评估板 |
状况 |
无铅(Pb-free) |
简短说明 |
所用产品 |
| NCP508SQ33T1GEVB |
Active |
 |
NCP507 3.3V EVAL BOARD |
NCP508SQ33T1G |
