NCP571SN10T1GEVB:NCP571 1.0V EVAL BOARD
The demoboard supports the LDO regulator NCP571 with fix output voltage 1.0 V. An additional circuitry based on Single Input Buffer allows connect Enable signal with higher voltage than input voltage of LDO regulator up to 7 V. The ENABLE function allows turn the device to low consumption mode with quiescent current below 1 µA.
Size: 38mm x 30mm x 18mm
特性
- Input Voltage Range from 2.7 V to 12 V (Limited to 5.5 V in case the Single Output Buffer is powered too.)
- Low Quiescent Current, Typical 2.7 µA
- Output Current up to 150 mA
- Precision 3% at Ta = 25°C
- Internal Thermal Shutdown Protection
- NCV Prefix for Automotive and Other Applications Requiring Site and Control Changes
- These are Pb-Free Devices
|
应用
- Battery Powered Instruments
- Hand-Held Instruments
- Camcorders and Cameras

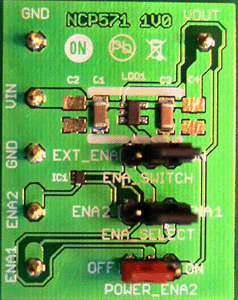

NCP571SN10T1GEVB 实物图
|
评估板信息
| 评估板 |
状况 |
无铅(Pb-free) |
简短说明 |
所用产品 |
| NCP571SN10T1GEVB |
Active |
 |
NCP571 1.0V EVAL BOARD |
NCP571SN10T1G |
