NCP585EVB:NCP585 Low Iq 300 mA LDO Regulator Evaluation Board
The NCP585 series of low dropout regulators are designed for portable battery powered applications which require precise output voltage accuracy, low supply current and high ripple rejection. These devices feature an enable function which lowers current consumption significantly and are offered in the SOT23-5 and the HSON-6 packages. This series of devices has three modes, Chip Enable (CE mode), Fast Transient Mode (FT mode), and Low Power Mode (LP mode). Both the FT and LP modes are utilized via the ECO pin.
特性
- Excellent Line and Load Regulation
- Output Voltage Options: 0.9, 1.2 and 1.8 V
- Low Quiescent Current of 0.1 uA
- Low Temperature Drift Coefficient on the Output Voltage
- Fold Back Protection Circuit
|

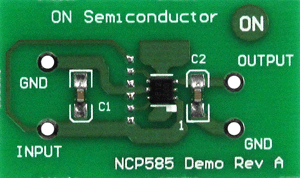

NCP585EVB 实物图
|
评估板信息
| 评估板 |
状况 |
无铅(Pb-free) |
简短说明 |
所用产品 |
| NCP585EVB |
Active |
 |
NCP585 Low Iq 300 mA LDO Regulator Evaluation Board |
NCP585DSAN12T1G |
