NCV7703GEVB:NCV7703 EVAL BOARD
The NCV7703 is a fully-protected triple half-bridge driver designed specifically for automotive and industrial motion control applications. The three half-bridge drivers have independent control. This allows for high-side, low side, and H-Bridge control. H-Bridge control provides forward, reverse, brake, and high impedance states. Driver control is accomplished via a standard Serial Peripheral Interface (SPI). The Evaluation Board includes both an NCV7703 and NCV8501 5V regulator. By means of a jumper, the user can select an on-board or external VCC source for the IC. Numerous convenient terminal points are provided to accommodate multiple application configurations.
|

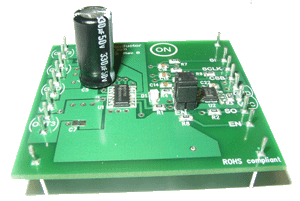

NCV7703GEVB 实物图
|
评估板信息
| 评估板 |
状况 |
无铅(Pb-free) |
简短说明 |
所用产品 |
| NCV7703GEVB |
Active |
 |
NCV7703 EVAL BOARD |
NCV7703BD2R2G |
