NL17SZ74:Single D Flip-Flop
The NL17SZ74 MiniGate™ is a high performance, full function Edge triggered D Flip Flop, with all the features of a standard logic device such as the 74LCX74.
技术特性
- Extremely High Speed: tPD 2.6 ns (typical) at VCC = 5 V
- Designed for 1.65 V to 5.5 V VCC Operation
- 5 V Tolerant Inputs - Interface Capability with 5 V TTL Logic
- LVTTL Compatible
- LVCMOS Compatible
- 24 mA Balanced Output Sink and Source Capability
- Near Zero Static Supply Current in All Three Logic States (10 µA) Substantially Reduces System Power Requirements
- Replacement for NC7SZ74
- Tiny Ultra Small Package Only 2.1 X 3.0 mm
- High ESD Ratings: 2000 V Human Body Model
200 V Machine Model
- Chip Complexity: FET = 64
- Pb-Free Packages are Available
|
封装图 MARKING DIAGRAM

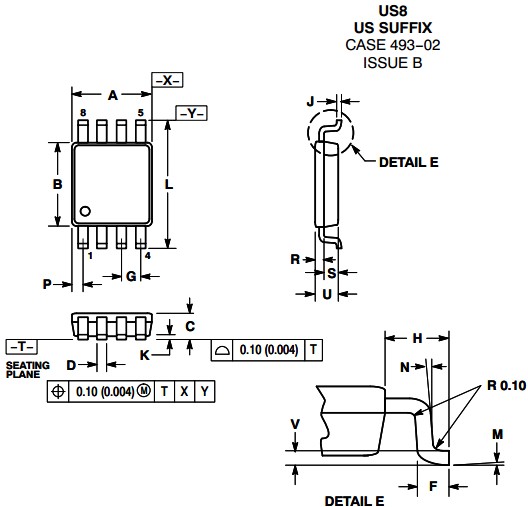

![NL17SZ74 封装图](/image/on/US8_PACKAGE_DIMENSIONS.jpg)
|
订购信息 Ordering Information
产品 |
状况 |
Compliance |
具体说明 |
封装 |
MSL* |
容器 |
预算价格 (1千个数量的单价) |
类型 |
外形 |
类型 |
数量 |
NL17SZ74USG |
Active |
|
Single D Flip-Flop |
US8 |
493-01 |
1 |
Tape and Reel |
3000 |
$0.2 |
NLV17SZ74USG |
Active |
AEC Qualified |
PPAP Capable |
Pb-free |
Halide free |
|
Single D Flip-Flop, Automotive Device |
US8 |
493-01 |
1 |
Tape and Reel |
3000 |
$0.22 |
