NLX1G74:Single D Flip-Flop
The NLX1G74 is a high performance, full function edge-triggered D Flip-Flop in ultra-small footprint. The NLX1G74 input structures provide protection when voltages up to 7.0 V are applied, regardless of the supply voltage.
技术特性
- Extremely High Speed: tPD = 2.6 ns (typical) at VCC = 5.0 V
- Designed for 1.65 V to 5.5 V VCC Operation
- Low Power Dissipation: ICC = 1 A (Max) at TA = 25C
- 24 mA Balanced Output Sink and Source Capability at VCC = 3.0 V
- Balanced Propagation Delays
- Overvoltage Tolerant (OVT) Input Pins
- Ultra Small Package
- This is a PbFree Device
|

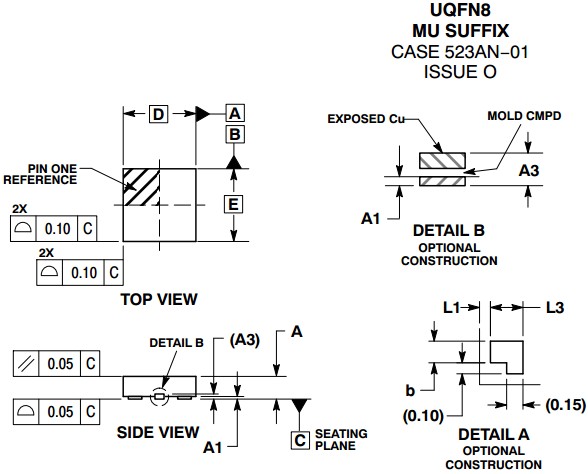

封装图 MARKING DIAGRAM
![NLX1G74 封装图](/image/on/UQFN-8_PACKAGE_DIMENSIONS.jpg)
|
订购信息 Ordering Information
产品 |
状况 |
Compliance |
具体说明 |
封装 |
MSL* |
容器 |
预算价格 (1千个数量的单价) |
类型 |
外形 |
类型 |
数量 |
NLX1G74MUTCG |
Active |
|
Single D Flip-Flop |
UQFN-8 |
523AN |
1 |
Tape and Reel |
3000 |
$0.16 |
