NOA3301:Ambient Light Sensor + Proximity Sensor
The NOA3301 combines an advanced digital proximity sensor and LED driver with an ambient light sensor (ALS) and tri-mode I2C interface with interrupt capability in an integrated monolithic device. Multiple power management features and very low active sensing power consumption directly address the power requirements of battery operated mobile phones and mobile internet devices.
技术特性
- 30dB proximity threshold range
- 32:1 LED driver range
- IR and ambient light rejection
- Dark current compensation
- Photopic light response
- Output counts proportional to ambient light intensity
应用
- Measure human presense in terms of distance
- Control backlight intensity
终端产品
- Smart phones, mobile internet devices, MP3 players, GPS
- Mobile device displays and backlit keypads
|

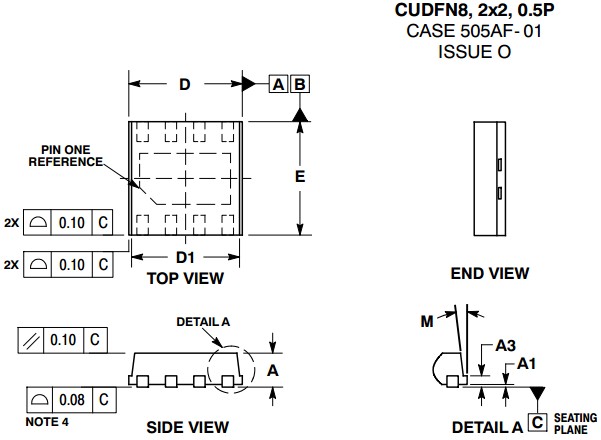

封装图 MARKING DIAGRAM
|
订购信息 Ordering Information
| 产品 |
状况 |
Compliance |
具体说明 |
封装 |
MSL* |
容器 |
预算价格 (1千个数量的单价） |
| 类型 |
外形 |
类型 |
数量 |
| NOA3301CUTAG |
Active |
|
Ambient Light Sensor + Proximity Sensor |
CUDFN-8 |
505AF |
5 |
Tape and Reel |
2500 |
$0.478 |
数据资料DataSheet下载
