NV8664ST50T3GEVB:NV8664ST50T3G Evaluation Board
The NCV8664 is a precision 3.3 V and 5.0 V fixed output, low dropout integrated voltage regulator with an output current capability of 150 mA. Careful management of light load current consumption, combined with a low leakage process, achieve a typical quiescent ground current of 22µA. The output voltage is accurate within ±2.0%, and maximum dropout voltage is 600 mV at full rated load current. The following ceramic capacitors are the recommended values to be used with these devices; Cin = 0.1µF, Cout = 10µF.
|

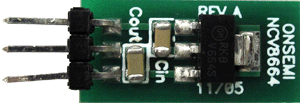

NV8664ST50T3GEVB 实物图
|
评估板信息
| 评估板 |
状况 |
无铅(Pb-free) |
简短说明 |
所用产品 |
| NV8664ST50T3GEVB |
Active |
 |
NV8664ST50T3G Evaluation Board |
NCV8664ST50T3G |
技术文档
