RF1126 Broadband Medium Power SPDT Switch
The RF1126 is a single-pole double-throw (SPDT) switch designed for general purpose switching applications which require very low insertion loss and medium power handling capability. The RF1126 is ideally suited for battery operated applications requiring high performance switching with very low DC power consumption. The RF1126 features low insertion loss high linearity and very good harmonic characteristics and is operable from 1.8V to 3.6V control voltage. It is fabricated with 0.5μm GaAs pHEMT process and is packaged in a very compact 2mmx1.3mm 6-pin leadless QFN package
技术特性 Features
- Broadband Performance Low Frequency to 6GHz
- Very Low Insertion Loss
0.26dB Typ at 1GHz
0.32dB Typ at 2GHz
- Excellent Harmonics <-75dBc at 2GHz
- High IIP3: 62dBm
- 1.8V Capable for Low Power Applications
- P0.1dB>23dBm Typ @ 2GHz
- Compact Footprint(2.0mmx1.3mmx0.35mm 6-pin QFN)
订购信息 Ordering Information
- RF1126 Broadband Medium Power SPDT Switch
- RF1126PCBA-410 Fully Assembled Evaluation Board
应用领域 Applications
- Cellular Handset Applications
- Antenna Tuning Applications
- IEEE802.11b/g WLAN Applications
- Multi-mode GSM, W-CDMA Applications
- WLAN Applications
|
技术指标
| Switch Type: |
SPDT |
| Frequency Range (Min) (MHz): |
0 |
| Frequency Range (Max) (MHz): |
6000 |
| Insertion Loss (dB): |
0.25 |
| Isolation (dB): |
27 |
| OP1dB (dBm): |
23 |
| VSUPPLY (V): |
3 |
| Package: |
QFN |
| Form: |
Packaged |

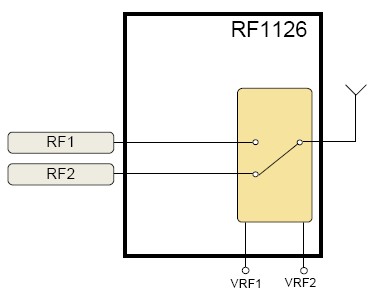

功能框图 Functional Block Diagram
|
订购信息 Ordering Information
| 订购型号 |
MOQ* |
INC* |
Packaging and Shipping Details |
QTY |
Per 1 EA |
| RF1126 |
25 EA |
25 EA |
Standard 25 Piece Bag Shipping From Beijing |
1+ |
$0.63 |
| RF1126SR |
100 EA |
100 EA |
Standard 100 Piece 7" Short Reel Shipping From Beijing |
100+ |
$0.44 |
| RF1126TR7 |
2500 EA |
2500 EA |
Standard 2500 Piece 7" Reel Shipping From Beijing |
750+ |
$0.31 |
| RF1126PCK-410 |
1 EA |
1 EA |
Standard 1 Piece Bag Shipping From Greensboro |
1+ |
$150.00 |
