RF1194B SFM WITH INTEGRATED GSM RECEIVE FILTERS: QB GSM, TB UMTS

The RF1194B is a single-pole nine-throw (SP9T) Switch Filter Module (SFM). Low insertion loss along with excellent linearity performance achieved by the RF1194B makes it ideal for multi-mode GSM, EDGE, and UMTS handset applications. This module builds upon RFMD’s pHEMT Switch technology and integrates low pass filtering on the GSM transmit paths thus avoiding the need for external harmonic attenuation. This module integrates Low loss GSM Receive SAW filters for ease of implementation. This module also integrates a decoder and is compatible with +1.8 V control logic. The RF1194B is packaged in a compact 4.5 mm x 4.5 mm x 1.2 mm, 28-pin, laminate Module which allows for a small solution size and lowest BOM cost as it does not require external DC blocking capacitors.

技术特性 Features

Integrated GSM RX SAW Filters for Ease of Implementation
Very Low Insertion Loss
Best in Class Harmonic Attenuation with Integated LPF
Exceptional Linearity Performance
Lowest BOM Cost and Small Solution - No External DC Blocking Capacitors
GPIO Interface and Compatible with 1.8 V Logic (VCTL - High Min = 1.3 V)
Compact Footprint, 4.5 mm x 4.5 mm x 1.2 mm, 28-Pin Laminate Module

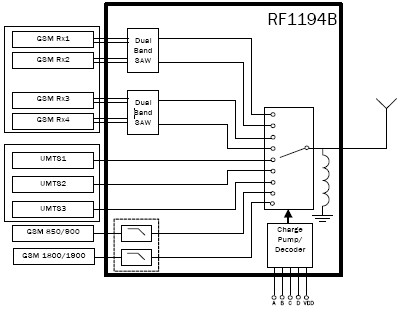

功能框图 Functional Block Diagram

技术指标

Switch Type:	SP9T
Frequency Range (Min) (MHz):	915
Frequency Range (Max) (MHz):	824
Insertion Loss (dB):	1.20
Package:	Module

应用领域 Applications

Cellular Handset Applications
Multi-Mode GSM, EDGE,WCDMA Applications
GSM/GPRS/EDGE Switch Applications
Cellular Infrastructure Applications

产品实物图

订购信息 Ordering Information

RF1194B SFM with Integrated GSM Receive Filters: QB GSM, TB UMTS
RF1194BPCBA-410 Fully Assembled Evaluation Board

应用技术支持与电子电路设计开发资源下载	大小(KB)	版本信息
RF1194B 数据资料DataSheet下载.pdf	899	DS101118
