RF5501 Switch and LNA Front End Solution
The RF5501 is designed specifically for high-performance WiFi applications in the 2.4GHz to 2.5GHz ISM band, including Personal Media Players (PMPs), digital cameras, and WiFi enabled handsets.The RF5501 integrates the LNA with bypass and an SP3T switch of a front end solution for WiFi and Bluetooth® combination systems. The integrated input and output match reduces the number of external components, keeping cost down and utilizing minimum layout area for implementation. The RF5501 is provided in a 2mm x 2mm x 0.5mm, 12-pin QFN package. This LNA + Switch front end solution meets or exceeds the specification requirements of IEEE 802.11 b/g/n WiFi RF systems.
技术特性 Features
- Single Supply Voltage 3.0V to 4.5V
- Integrated SP3T Switch and LNA with Bypass
- Typical Gain is 11dB and 2.0dB NF in Rx Mode Pin-to-Pin
- SP3T Switch Control Voltage is 2.1V to 5V (3.0V Typical)

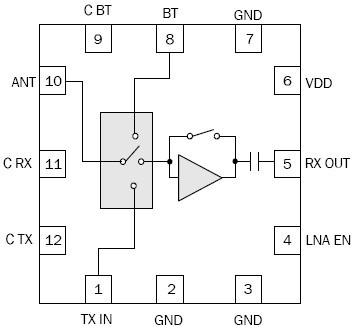

功能框图 Functional Block Diagram
订购信息 Ordering Information
- RF5501 Standard 25 piece bag
- RF5501SR Standard 100 piece reel
- RF5501TR7 Standard 2500 piece reel
- RF5501PCK-410 Fully Assembled Evaluation Board
|
技术指标
| Switch Type: |
SP3T |
| Frequency Range (Min) (MHz): |
2400 |
| Frequency Range (Max) (MHz): |
2500 |
| Insertion Loss (dB): |
0.8 |
| Isolation (dB): |
23 |
| VSUPPLY (V): |
3.3 |
| Package: |
QFN |
| Gain (dB): |
11 |
| NF (dB): |
2 |
| OIP3 (dBm): |
15 |
| ISUPPLY (mA): |
7 |
应用领域 Applications
- IEEE802.11b/g/n WiFi Applications
- Portable Battery-Powered Equipment
- WiFi/Bluetooth® Combination Devices
产品实物图
|
订购信息 Ordering Information
| 订购型号 |
MOQ* |
INC* |
Packaging and Shipping Details |
QTY |
Per 1 EA |
| RF5501 |
25 EA |
25 EA |
Standard 25 Piece Bag Shipping From Beijing |
1+ |
$1.06 |
| RF5501SR |
100 EA |
100 EA |
Standard 100 Piece 7" Short Reel Shipping From Beijing |
100+ |
$0.74 |
| RF5501TR7 |
2500 EA |
2500 EA |
Standard 2500 Piece 7" Reel Shipping From Beijing |
750+ |
$0.51 |
| RF5501PCK-410 |
1 EA |
1 EA |
Standard 1 Shipping From Greensboro |
1+ |
$150.00 |
