RF6515 2.85V to 4.2V 2.4GHz Front End Module
The RF6515 integrates a complete solution in a single Front End Module (FEM) forWLAN and ZigBee® applications in the 2.4 GHz to 2.5 GHz band. This FEM integrates the PA plus harmonic filter in the transmit path. It also provides balanced input and output signsals for both the TX and RX paths respectively.The RF6515 FEM is ideal for ZigBee® systems operating with a minimum output power of 22 dBm and high efficiency requirements. On the receive path, the NF is down to 1.5 dB. This FEM meets or exceeds the system requirements for WLAN and ZigBee® applications operating in the 2.4 GHz to 2.5 GHz band.
技术特性 Features
- TX Output Power: 22 dBm
- TX Gain : 28 dB
- RX NF: 1.5 dB

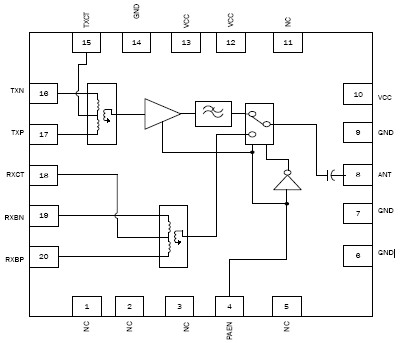

功能框图 Functional Block Diagram
订购信息 Ordering Information
- RF6515SQ Standard 25 piece bag
- RF6515SR Standard 100 piece reel
- RF6515TR7 Standard 750 piece reel
- RF6515TR13 Standard 2500 piece reel
- RF6515PCK-410 Fully assembled evaluation board tuned for 2.4GHz to
2.5GHz and 5 piece loose samples
|
技术指标
| Frequency Range (Min) (MHz): |
2400 |
| Frequency Range (Max) (MHz): |
2500 |
| PA Gain (dB): |
28 |
| POUT (dBm): |
20 |
| OP1dB (dBm): |
22 |
| VSUPPLY (V): |
3.3 |
| PA ISUPPLY (mA): |
180 |
| Efficiency (%): |
30 |
| Switch Type: |
SP2T |
| Package: |
QFN-20 |
应用领域 Applications
- ZigBee® 802.15.4 Based Systems for Remote Monitoring and Control
- Smart Meters for Energy Management.
- 2.4GHz ISM Band applications.
- Portable battery powered equipment.
产品实物图
|
订购信息 Ordering Information
| 订购型号 |
MOQ* |
INC* |
Packaging and Shipping Details |
QTY |
Per 1 EA |
| RF6515SQ |
25 EA |
25 EA |
Standard 25 Piece Bag Shipping From Greensboro |
1+ |
$4.13 |
| RF6515SR |
100 EA |
100 EA |
Standard 100 Piece 7" Short Reel Shipping From Greensboro |
100+ |
$2.89 |
| RF6515TR7 |
750 EA |
750 EA |
Standard 750 Piece 7" Reel Shipping From Greensboro |
750+ |
$2.01 |
| RF6515TR13 |
2500 EA |
2500 EA |
Standard 2500 Piece 13" Reel Shipping From Greensboro |
|
|
| RF6515PCK-410 |
1 EA |
1 EA |
Standard 1 Shipping From Greensboro |
1+ |
$150.00 |
