RF6539 3.3V to 4.0V 915MHz Transmit/Receive Module
This module is intended for 915MHz AMR solutions. It provides separate ports for Rx and Tx paths and two ports on the output for connecting a diversity solution or a test port. The PA section provides a nominal output power of 22dBm. The device is provided in a 5.5mm x 5.0mm, 28-pin package.
技术特性 Features
- Tx Output Power: 22dBm
- Separate 50Ω Tx/Rx Transceiver Interface
- Rx Insertion Loss: 1dB
- Antenna Diversity Switch

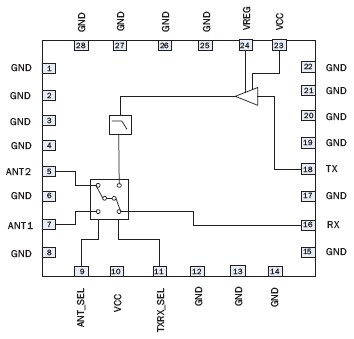

功能框图 Functional Block Diagram
订购信息 Ordering Information
- RF6539 Standard 25 piece bag
- RF6539SR Standard 100 piece reel
- RF6539TR7 Standard 2500 piece reel
- RF6539PCBK-410 Fully Assembled Evaluation Board and 5 loose sample pieces
|
技术指标
| Frequency Range (Min) (MHz): |
902 |
| Frequency Range (Max) (MHz): |
928 |
| PA Gain (dB): |
16.5 |
| POUT (dBm): |
22 |
| OP1dB (dBm): |
22 |
| VSUPPLY (V): |
3.6 |
| PA ISUPPLY (mA): |
100 |
| Efficiency (%): |
40 |
| Switch Type: |
DPDT |
| Package: |
Module |
应用领域 Applications
- Wireless Automated Metering
- Wireless Alarm Systems
- Portable Battery Powered Equipment
- Smart Energy
- 868MHz/900MHz ISM Band Application
- Single Chip RF Front End Module
