RFCP5773
The RFCP5773 Coupler is designed for applications that require small, low cost, and highly reliable surface mount components. Applications may be found in broadband, wireless, and other communications systems. These units are built Lead-Free and RoHS compliant. S-Parameters are available on request.
技术特性 Features
- Frequency Range 5MHz to 1200MHz
- Low Cost and RoHS Compliant
- Industry Standard SMT package
- Available in Tape-and-Reel
- 75Ω Characteristic Impedance
订购信息 Ordering Information
- RFCP5773SB 5MHz to 1200MHz 20dB SMT Coupler N/A 5-Piece bag
- RFCP5773SQ 5MHz to 1200MHz 20dB SMT Coupler N/A 25-Piece bag
- RFCP5773SR 5MHz to 1200MHz 20dB SMT Coupler 13” 100-Piece reel
- RFCP5773TR13 5MHz to 1200MHz 20dB SMT Coupler 13” 1000-Piece reel
产品实物图
|
技术指标
| Characteristic Impedance (Ω): |
75 |
| Frequency Range (Min) (MHz): |
5 |
| Frequency Range (Max) (MHz): |
1200 |
| Nominal Coupling (dB): |
20 +/- 0.5 |
| Coupling Flatness (dB): |
+/- 0.5 |
| Mainline Loss (dB): |
0.5 |
| Directivity (dB): |
20 |
| Minimum Return Loss (dB): |
14 |
| Package: |
S20 |

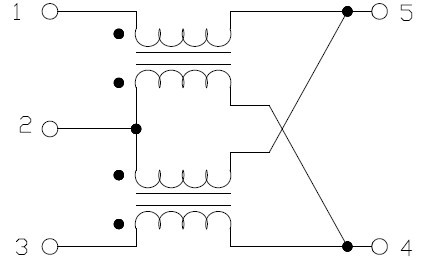

功能框图 Functional Block Diagram
|
