RFDA2077 Digital Controlled Variable Gain Amplifier 1700MHz to 2400MHz

RFMD’s RFDA2077 is a dual channel digital controlled variable gain amplifier featuring high linearity over the entire gain control range with noise figure less than 6.5dB in its maximum gain state. The gains of two 6-bit digital step attenuators are programmed with a serial mode control interface (SPI). The RFDA2077 is packaged in a small 7.0mm x 7.0mm leadless laminate MCM, which contains plated through thermal vias for ultra low thermal resistance. This module is easy to use with no external matching components required.

技术特性 Features

Dual Channel VGA
Frequency Range 1700MHz to 2400MHz
Full Internal Matching and No External Bias Inductors
Two 6-Bit Digital Step Attenuators
12-Bit SPI Serial Control Programming
High Channel Isolation = 50dBc
Max Gain=12.2dB@1800MHz
Gain Control Range=31.5dB(0.5dB step size)
High OIP3/P1dB=+41/24.5dBm@1800MHz
Single +5V Supply
Small 32-Pin, 7.0mmx7.0mm,MCM
Power Up Programming

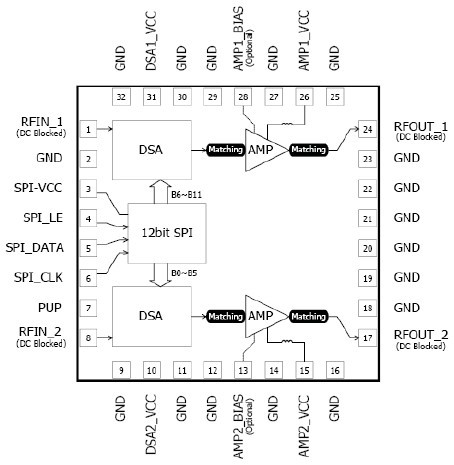

功能框图 Functional Block Diagram

技术指标

Frequency Range (Min) (MHz):	1700
Frequency Range (Max) (MHz):	2400
Gain (dB):	12.0
NF (dB):	7
OP1dB (dBm):	24.5
OIP3 (dBm):	41
VSUPPLY (V):	5
ISUPPLY (mA):	220
Package:	MCM

订购信息 Ordering Information

RFDA2077TR13 13” Reel with 2500 pieces
RFDA2077TR7 7” Reel with 750 pieces
RFDA2077SR 7” Sample Reel with 100 pieces
RFDA2077SQ Sample bag with 25 pieces
RFDA2077PCK-410 1700MHz to 2400MHz PCBA with 5-piece sample bag

应用领域 Applications

Cellular, 3G Infrastructure
WiBro, WiMax, LTE
Microwave Radio
High Linearity Power Control

RFDA2077 产品实物图

订购信息 Ordering Information

订购型号	MOQ*	INC*	Packaging and Shipping Details	QTY	Per 1 EA
RFDA2077SQ	25 EA	25 EA	Standard 25 Piece Bag Shipping From Greensboro	1+	$16.02
RFDA2077SR	100 EA	100 EA	Standard 100 Piece 7" Short Reel Shipping From Greensboro	100+	$11.20
RFDA2077TR7	750 EA	750 EA	Standard 750 Piece 7" Reel Shipping From Greensboro	750+	$7.47
RFDA2077TR13	2500 EA	2500 EA	Standard 2500 Piece 13" Reel Shipping From Greensboro
RFDA2077PCK-410	1 EA	1 EA	Standard 1 Shipping From Greensboro	1+	$150.00

应用技术支持与电子电路设计开发资源下载	大小(KB)	版本信息
RFDA2077 数据资料DataSheet下载：PDF	1474	DS101202
