RFSW1012 Broadband SPDT Switch

The RFSW1012 is a single-pole double-through (SPDT) switch designed for applications requiring very low insertion loss and high power handling capability. The excellent linearity performance of the RFSW1012 makes it ideal for use in LTE, WCDMA, and CDMA applications. This switch is ideally suited for use in CATV and SATV applications. The RFSW1012 is packaged in a compact 2mm x 2mm x 0.55mm, 12-pin, QFN package.

技术特性 Features
  • 5MHz to 6000MHz Operation
  • 50Ω or 75Ω Applications
  • Low Insertion Loss: 0.30dB at 1980MHz
  • High Isolation: 37dB at 2GHz
  • High IP3: >75dBm at 2GHz
  • Compatible with Low Voltage Logic (VHIGH Minimum = 1.3V)
  • No External DC Blocking Capacitors Required on RF Paths Unless DC is Applied Externally
  • 2000V HBM ESD Rating on All Ports
  • CTB/CSO: >100dBc (41dBmV/ch., 137 Channels)
应用领域 Applications
  • LTE, WCDMA, GSM
  • CATV, SATV Applications
  • Post PA Switching
  • General Purpose Switching Applications
订购信息 Ordering Information
  • RFSW1012SQ 25-Piece sample bag
  • RFSW1012SR 7" Sample reel with 100 pieces
  • RFSW1012TR13 13" Reel with 2500 pieces
  • RFSW1012PCK-411 50 PCBA with 5-piece sample bag
  • RFSW1012PCK-410 75 PCBA with 5-piece sample bag
技术指标
Switch Type: SPDT
Frequency Range (Min) (MHz): 5
Frequency Range (Max) (MHz): 6000
Insertion Loss (dB): 0.35
Isolation (dB): 37
OP1dB (dBm): 41
VSUPPLY (V): 3
Package: QFN

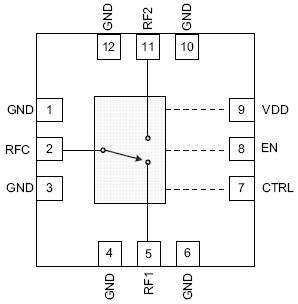

功能框图 Functional Block Diagram

RFSW1012功能框图

产品实物图

RFSW1012  产品实物图


应用技术支持与电子电路设计开发资源下载 大小(KB) 版本信息
RFSW1012数据资料DataSheet下载:PDF 704 DS120601
