S3C2450 SAMSUNG 三星ARM微处理器
General DescriptionSAMSUNG's S3C2450 is a 32/16-bit RISC cost-effective, low power, high performance micro-processor solution for general applications including the GPS Navigation and Mobile Phone markets. Additionally, in order to allow for lower system costs, higher performance and low power, the S3C2450 is fabricated using the 65nm low power CMOS process.
The S3C2450 carries revolutionary upgrades with respect to the S3C2443. Most notably, upgrade to ARM926EJ core, 2D Graphics Accelerator, added low power mode, as well as embedded internal ROM/RAM for secure boot and moviNAND booting and low power audio decoding. Furthermore, peripheral and feature upgrades have also been made to increase performance, as well as flexibility. Examples include upgraded Camera I/F, USB Device 2.0 HS, MMC/HS-MMC/SD/SDHC ports, HS-SPI ports and upgraded memory interfaces.
All in all, the S3C2450 presents a low-cost, highly embedded solution with upgraded features

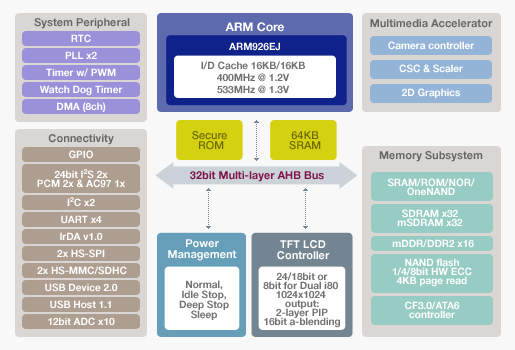

Features
- ARM926EJ CPU 400/533MHz with 16KB I-cache and 16KB D-cache
- Dual port external memory controller: DRAM/ROM control and chip select logic
- 64KB internal general purpose SRAM
- 32KB internal ROM for moviNAND booting
- LCD controller with DMA-dedicated: 24bpp, 2-PIP
- Camera controller with BT 601/656 input: 8MP Input and 2MP scaled TFT-LCD, 4K color STN, and 180° rotator
- 2D graphics accelerator
- 8-ch DMAs with external request pins
- 4-ch UART (3Mbps) with IrDA 1.0 (64B FIFO)
- 2-ch HS-SPI (50Mbps)
- CF+ & ATA I/F
- 2-ch IIC: multi-master
- 2-ch IIS: PCM and AC97 I/F
- 2-ch SD host controller version 2.0 (SDHC) & Multimedia card protocol version 2.11 (HS-MMC)
- 1 port USB Host v1.1 full speed
- 1 port USB Device v2.0 high speed
- 4-ch PWM timers & 1-ch internal timers
- Real time clock & Watch dog timer
- 2 PLLs with on-chip clock generator
- Power modes: Normal, Idle, Stop & Deep Stop, Sleep and Power-off
- 10-ch 12-bit ADC (Touch screen interface)
- 65nm low-power technology and MtCMOS technology incorporated
- Package
- 400-pins FBGA (0.5mm Pitch), 13 x 13 x 1.4mm
S3C2450 订购型号
- S3C2450X01-YL40 is Lead-free, RoHS compliant & Halogen-free。
- S3C2450X01-YL80 is Lead-free and RoHS-compliant。
- S3C2450X01-YY40 is Lead-free, RoHS compliant & Halogen-free.
