AA106-86LF GaAs IC 5-Bit Digital Attenuator 0.5 dB LSB Positive Control 0.5–2.0 GHz

The AA106-86 is a 5-bit, single positive control GaAs IC FET digital attenuator in a low-cost MSOP-10 package. This attenuator has an LSB of 0.5 dB and a total attenuation of 15.5 dB. The attenuator requires external DC blocking capacitors, positive supply voltage (VS) and five individual bit control voltages (V1–V5). The AA106-86 is particularly suited where high attenuation accuracy, low insertion loss and low intermodulation products are required. Typical applications include cellular radio, wireless data, and wireless local loop gain level control circuits.

技术特性

Attenuation 0.5 dB steps to 15.5 dB with high accuracy
Single positive control (3 to 5 V) for each bit
Low DC power consumption
Miniature low-cost MSOP-10 plastic package
Available lead (Pb)-free and RoHS-compliant MSL-1 @ 260 °C
per JEDEC J-STD-020

订购信息 Ordering Information

AA106-86LF
AA106-86

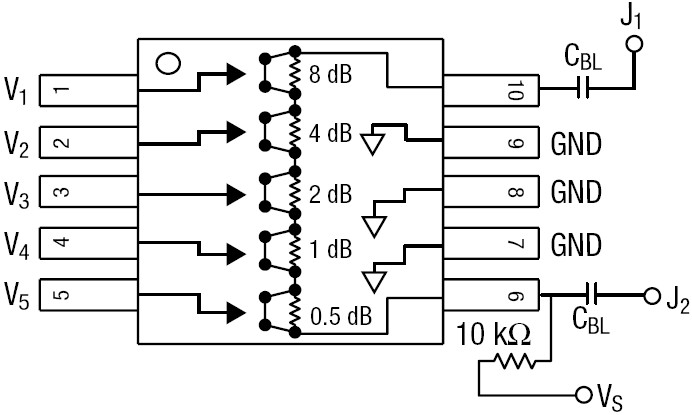

引脚定义

应用技术支持与电子电路设计开发资源下载	版本信息	大小
AA106-86LF 数据资料DataSheet下载:pdf	Rev.V2	2 页
