AAT2430B 16 Channel White LED Driver Solution with LED Current and Timing Control

The AAT2430B is a highly integrated, high efficiency white LED backlight solution for large size LCD panels used in LCD TVs. The device operates from a wide 10.8V to 28V DC power supply. 16 precision current sinks provide constant current drive for up to 160 white LEDs. A wide range of series LEDs is possible because the current sinks can withstand 35V. A SPI compatible interface operates up to 30MHz, allowing fast, independent digital control of each current sink. Full scale LED current is programmed from 20mA to 150mA using an external resistor. LED brightness variation is compensated by setting relative current sink magnitudes with an 8-bit resolution dot correction register for each LED current sink. The AAT2430B provides a 12-bit resolution phase delay per LED current sink that can be used to synchronize the LEDs to VSYNC. Device addressing provides for up to 256 LED strings. A 12-bit resolution grayscale PWM brightness setting is generated via a clock from a PLL synchronized to VSYNC or from the external VSYNC and GSCLK pins. The AAT2430B provides fault handling and fault reporting through the interface. If diodes are shorted on one or more strings, the current sinks will maintain operation due to the high voltage rating of the outputs, however a fault condition will be reported on the open drain Fault pin. Similarly, if an open is detected or an over temperature condition arises, the fault is reported on the Fault pin. When a fault is reported, the nature of the fault condition can be read through the serial interface. The LED power voltage may be regulated by using the CSFBO (current sense feedback output) signal as feedback for the LED voltage regulator. This analog signal represents the highest VF string of LEDs. A CSFBI (current sense feedback input) signal allows for daisy chaining of multiple AAT2430B ICs. The 3D feedback function extends the dynamic range of the feedback system by changing the VREG input voltage on the AAT2410 with respect to the dropout voltage for a specific DOT setting, and the dropout/CSFBO voltage is optimized internally as DOT is changed. Thermal protection circuitry shuts down the device in the event of an over-temperature condition. The AAT2430B is available in the Pb-free, thermally enhanced 48-pin 7mm x 7mm TQFN package.

技术特性
  • VIN Range: 10.8V – 28V
  • 16 Programmable LED Current Sinks
  • ±1.5% Accuracy @ 25°C
  • ±1.5% Matching @ 25°C
  • SPI Interface
  • Digitally Programmable Individual Channels
  • Up to 15MHz Clock Speed
  • Read/Write Registers
  • High Resolution Digital Control for Individual Channels
  • 12-Bit Resolution Grayscale PWM Brightness
  • 12-Bit Resolution Channel Phase Delay
  • 8-Bit Resolution Global Current Setting
    (Dot Correction)
  • VSYNC PWM and Delay Synchronization
  • Integrated Fault Protection
  • Open Circuit LED(s)
  • Programmable Short LED Threshold
  • Over-Temperature Protection
  • 3D Feedback Function
  • 9mm x 9mm 64-pin QFN Package with 0.5mm pitch or 14mm x 14mm 64-pin Low Profile QFP Package with 0.8mm pitch
应用领域 APPLICATION
  • Large Size LCD TVs, Panels
  • White LED Backlight, Dynamic Edge LCD TV Backlight
订购信息 Ordering Information
  • AAT2430B

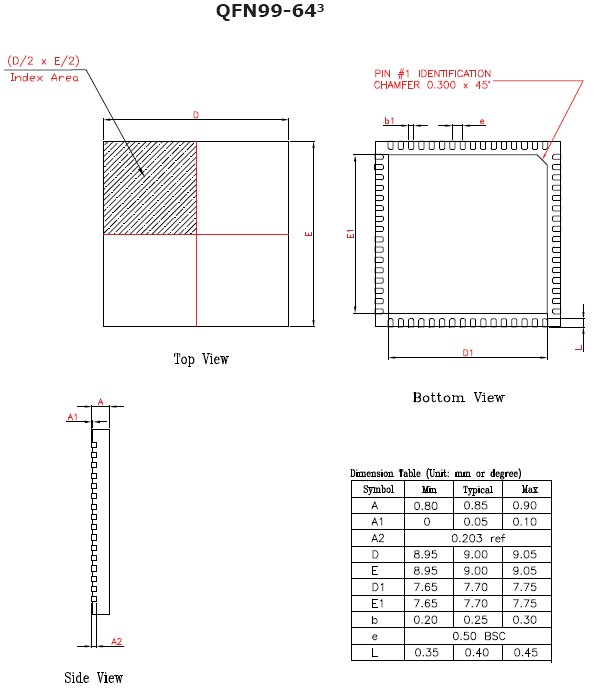

AAT2430B 封装图

AAT2430B 封装图
