AAT2601A Total Power Solution for Portable Applications
The AAT2601A and AAT2601AA are members of Skyworks' Total Power Management IC (TPMICTM) product family. They contain a single-cell Lithium Ion/Polymer battery charger, a fully integrated step-down converter and 5 low dropout (LDO) regulators. The device also includes 2 load switches for dynamic power path/sleep mode operation, making it ideal for small handheld portable GSM or CDMA mobile telephones. The battery charger is a complete thermally regulated constant current/constant voltage linear charger. It includes an integrated pass device, reverse blocking protection, high accuracy current and voltage regulation, charge status, and charge termination. The charging current, charge termination current, and recharge voltage are programmable with an external resistor and/or by a standard I2C interface. The AAT2601A has a typical battery under-voltage lockout of 2.35V and the AAT2601AA has a typical battery under-voltage lockout of 2.9V. The step-down DC/DC converter is integrated with internal compensation and operates at a switching frequency of 1.5MHz, thus minimizing the size of external components while keeping switching losses low and efficiency greater than 92%. All LDO output voltages are programmable using the I2C interface. The five LDOs offer 60dB power supply rejection ratio (PSRR) and low noise operation making them suitable for powering noise-sensitive loads. All six voltage regulators operate with low quiescent current. The total no load current when the step-down converter and 2 LDOs are enabled is only 170μA. The AAT2601A and AAT2601AA are available in a thermally enhanced low profile 5x5x0.8mm 36-pin TQFN package.
技术特性
|
应用领域 APPLICATION
订购信息 Ordering Information

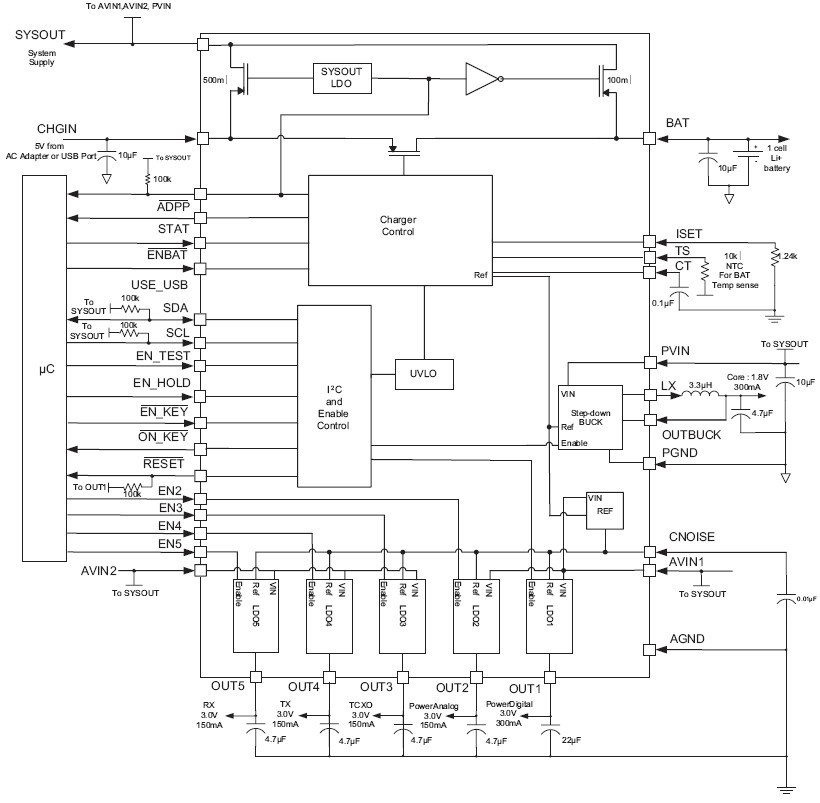

AAT2601A 典型应用
|
| 应用技术支持与电子电路设计开发资源下载 | 版本信息 | 大小 |
| AAT2601A 数据资料DataSheet下载:pdf | Rev.V2 | 2 页 |
