AAT2606 Six-Channel 300mA LDO Regulator

The AAT2606 is a member of Skyworks' Total Power Management IC (TPMIC™) product family. It contains six fully integrated 300mA low dropout (LDO) regulators in a small, Pb-free 14-pin 3mm x 3mm TDFN package, making it ideal for space-constraint systems. The AAT2606 features low power consumption, low dropout, and high noise immunity from the input power supply. Each channel consumes a mere 30μA of current when enabled and features 250mV of dropout at 250mA and 68dB of power supply rejection at 10kHz. Each channel has its own enable pin and uses a small 1μF output capacitor. Output voltages are factory One Time Programmable (OTP) between 0.6V and 3.7V with 100mV increment and typical regulation accuracy is ±1%. The AAT2606 is a safe solution that integrates an over-current limit for each channel and over-thermal protection. The device is rated over a temperature range of -40°C to 85°C.

技术特性

2.7V to 5.5V Operating Input Voltage Range
6 Outputs with Factory Programmable Voltages from 0.6V to 3.7V
300mA Output Current per Channel
3mm x 3mm, 14-Pin TDFN Package
±1% Typical Accuracy
Low 30μA Quiescent Current
High PSRR (68dB @10KHZ)
250mV Dropout Voltage at 250mA
Independent Enable
Over-Current Protection
Over-Thermal Protection

订购信息 Ordering Information

AAT2606

应用领域 APPLICATION

Portable Navigation Devices (PND)
Cellular Application
Handheld Products
Media Players (MP4 Players)

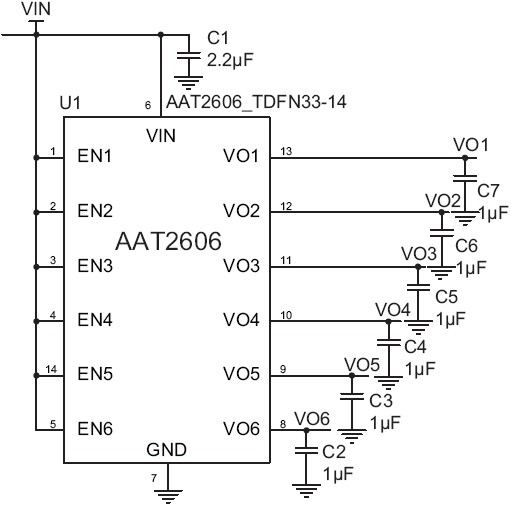

AAT2606 典型应用

应用技术支持与电子电路设计开发资源下载	版本信息	大小
AAT2606 数据资料DataSheet下载:pdf	Rev.V2	2 页
