AAT2614 Step-Down DC/DC Converter with Quad High PSRR LDOs

The AAT2614 is a multiple rail power management IC. It integrates a 600mA high-frequency switching-converter and four 300mA linear regulators. The switching power supply is a highly-integrated monolithic step-down converter operating at 1.7MHz, achieving high efficiency with small external components. The four linear regulators are high PSRR low dropout regulators (LDOs) providing accurate regulation and excellent transient response. The step-down converter and the four LDOs are all fixed voltage outputs of seven combinations for 1V, 1.2V, 1.3V, 1.8V, 2.8V, 3.0V and 3.3V. Integrated over-current or over-temperature protection circuitry becomes active when overload or over-temperature fault occurs and the AAT2614 recovers automatically when the fault is removed. The AAT2614 is available in a Pb-free, thermally enhanced 20-pin TQFN33 package and a 16-bump 0.4 pitch CSP package.

技术特性

Current Mode Control DC/DC Converter:
Fixed Factory Programmable Output Up to 600mA
1.7MHz Switching Frequency
Up to 90% Efficiency
Integrated Switching Power FETS
Integrated Compensation Network
Internal Current Limit
4 Low Dropout Regulators with Separate Enable Pins:
300mA per Channel
High PSRR
Factory Programmable Output
Integrated Soft-Start
Over-Current Protection
Over-Thermal Protection
TQFN33-20 and WLCSP-16 Packages

应用领域 APPLICATION

Cellular Phones
I/O Power
Memory Power
Processor Core Power
Smart Handheld Devices

订购信息 Ordering Information

AAT2614

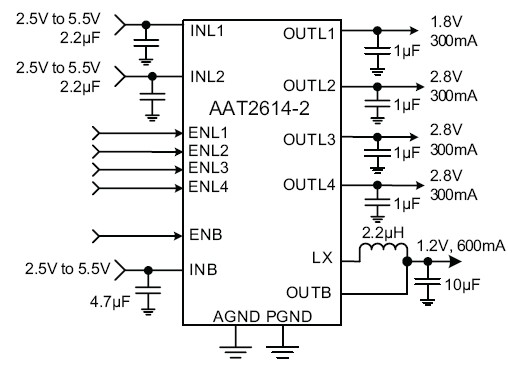

AAT2614 典型应用

应用技术支持与电子电路设计开发资源下载	版本信息	大小
AAT2614 数据资料DataSheet下载:pdf	Rev.V2	2 页
