AAT2868 Backlight LED Driver and Multiple LDO Lighting Management Unit
The AAT2868 is a highly integrated charge pump-based lighting management unit (LMU) offering eight LED channels with three linear regulators optimized for single- cell lithium-ion/polymer systems. The charge pump provides power for all LED outputs and multiple backlight and flash LED configurations are available. The backlight LED channel outputs are programmable up to 31mA and the total flash LED output current can be programmed up to 600mA. Skyworks' AS2Cwire™ single-wire interface is used to enable, disable, and set the current to one of 32 levels for the backlight and one of 16 levels for the flash. A separate flash enable and programmable safety timer are included for easy flash control. Backlight current matching is better than 3% for uniform display brightness, and flash current matching is better than 5% for uniform power dissipation. As an alternative, the main backlight LED's output current can be controlled via pulse width modulation (PWM). The AAT2868 also offers three high-performance low-noise MicroPower™ low dropout (LDO) linear regulators. The regulators output voltages are set through the AS2Cwire serial interface. Each LDO can supply up to 300mA load current and ground-pin current is only 80μA making the AAT2868 ideal for battery-operated applications. The AAT2868 is available in a Pb-free, space-saving TQFN34-24 package and operates over the -40°C to +85°C ambient temperature range.
技术特性
|
应用领域 APPLICATION
订购信息 Ordering Information

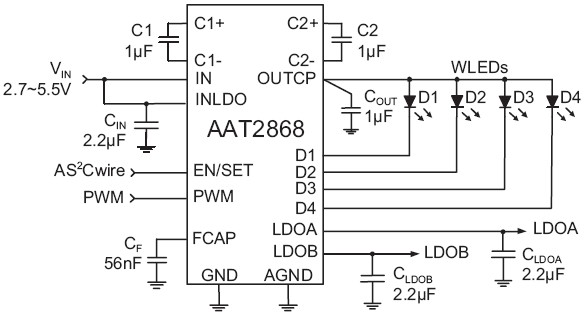

AAT2868 典型应用
|
| 应用技术支持与电子电路设计开发资源下载 | 版本信息 | 大小 |
| AAT2868 数据资料DataSheet下载:pdf | Rev.V2 | 2 页 |
