AAT3200 OmniPowerTM LDO Linear Regulator

The AAT3200 PowerLinear OmniPower low dropout (LDO) linear regulator is ideal for systems where a low-cost solution is required. This device features extremely low quiescent current, typically 20μA. Dropout voltage is also very low, typically 200mV. The AAT3200 has output short-circuit and over-current protection. In addition, the device has an over-temperature protection circuit which will shut down the LDO regulator during extended over-current events. The AAT3200 is available in a space-saving, Pb-free SC59 package. The device is rated over a -40°C to +85°C temperature range. Since only a small, 1μF ceramic output capacitor is required, the AAT3200 is a truly cost-effective voltage conversion solution. The AAT3201 is a similar product for this application, especially when a shutdown mode is required for further power savings.

技术特性

150mA Output
20μA Quiescent Current
Low Dropout: 200mV (typical)
High Accuracy: ±2.0%
Current Limit Protection
Over-Temperature Protection
Low Temperature Coefficient
Factory-Programmed Output Voltages: 2.0V to 3.5V
Stable Operation With Virtually Any Output Capacitor Type
3-Pin SC59 Package

订购信息 Ordering Information

AAT3200

应用领域 APPLICATION

CD-ROM Drives
Consumer Electronics

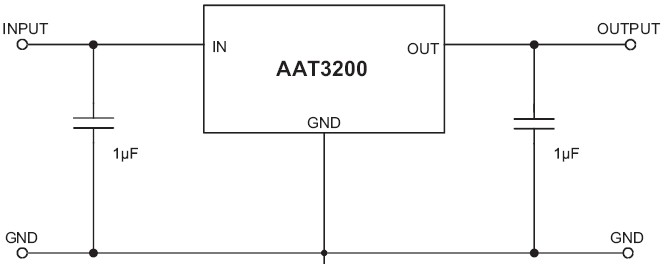

AAT3200 典型应用

应用技术支持与电子电路设计开发资源下载	版本信息	大小
AAT3200 数据资料DataSheet下载:pdf	Rev.V2	2 页
