AAT3220 150mA NanoPowerTM LDO Linear Regulator

The AAT3220 PowerLinear NanoPower low dropout (LDO) linear regulator is ideal for portable applications where extended battery life is critical. This device features extremely low quiescent current, typically 1.1μA. Dropout voltage is also very low, typically less than 225mV at the maximum output current of 150mA. The AAT3220 has output short-circuit and over-current protection. In addition, the device also has an over-temperature protection circuit which will shut down the LDO regulator during extended over-current events. The AAT3220 is available in a Pb-free, space-saving SC59 package. The device is rated over the -40°C to +85°C temperature range. Since only a small, 1μF ceramic output capacitor is required, often the only space used is that occupied by the AAT3220 itself. The AAT3220 is truly a compact and cost-effective voltage conversion solution. The AAT3221/2 are similar products for this application, especially when a shutdown mode is required for further power savings.

技术特性

1.1μA Quiescent Current
Low Dropout: 200mV (typ)
Guaranteed 150mA Output
High Accuracy: ±2.0%
Current Limit and Over-Temperature Protection
Low Temperature Coefficient
Factory-Programmed Output Voltages: 1.8V to 3.5V
Stable Operation With Virtually Any Output Capacitor Type
3-Pin SC59 Package
4kV ESD Rating

订购信息 Ordering Information

AAT3220

应用领域 APPLICATION

Cellular Phones
Digital Cameras
Handheld Electronics
Notebook Computers
PDAs
Portable Communication Devices
Remote Controls

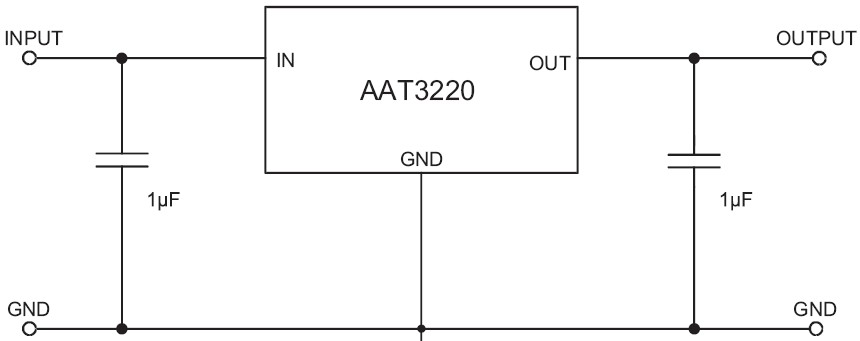

AAT3220 典型应用

应用技术支持与电子电路设计开发资源下载	版本信息	大小
AAT3220 数据资料DataSheet下载:pdf	Rev.V2	2 页
