AAT3258 300mA LDO Linear Regulator with μP Reset

The AAT3258 combines a high performance, low noise, 300mA low dropout (LDO) linear regulator with a microprocessor reset monitor. The 300mA output capability of the LDO regulator makes this device ideal for use with microprocessors and DSP cores in portable products. The microprocessor reset monitor section has very low quiescent current consumption and has an active low reset output. The AAT3258 has separate input pins for the reset monitor and LDO regulator so they may be operated from independent sources for increased design flexibility. This device features very low quiescent current, typically less than 71μA. The LDO regulator has low dropout voltage, typically 400mV at the full output current level, making it ideal for portable applications where extended battery life is critical. The AAT3258 LDO regulator section has complete over-current/short-circuit and over-temperature protection circuits to guard against extreme operating conditions. The device also has an active output pull-down function when disabled. The AAT3258 is available in a Pb-free, space-saving 8-pin TSOPJW package. This device is capable of operation over a -40°C to +85°C temperature range.

技术特性
  • Integrated LDO Regulator with μP Reset
  • 300mA Output LDO Regulator
  • Low Dropout Regulator, 400mV at 300mA
  • High LDO Output Voltage Accuracy, Typically 1.5%
  • Very Low Noise and High Power Supply Rejection Ratio (PSRR) LDO
  • Low Quiescent Current at 71μA
  • LDO Over-Current/Short-Circuit Protection
  • LDO Over-Temperature Protection
  • LDO Power Saving Shutdown Mode
  • Independent Device Power Inputs
  • High Accuracy Reset Monitor Threshold: ±1.5%
  • Active Low Push-Pull Monitor Reset Output
  • <2.0μA of Shutdown Current
  • Uses Low Equivalent Series Resistance (ESR) Ceramic Capacitors
  • -40°C to +85°C Temperature Range
  • 8-Pin TSOPJW Package
订购信息 Ordering Information
  • AAT3258
应用领域 APPLICATION
  • Cellular Phones
  • Digital Cameras
  • Handheld Instrumentation
  • Microprocessor/DSP Core/IO Power
  • Notebook Computers
  • PDAs and Handheld Computers
  • Portable Communication Devices

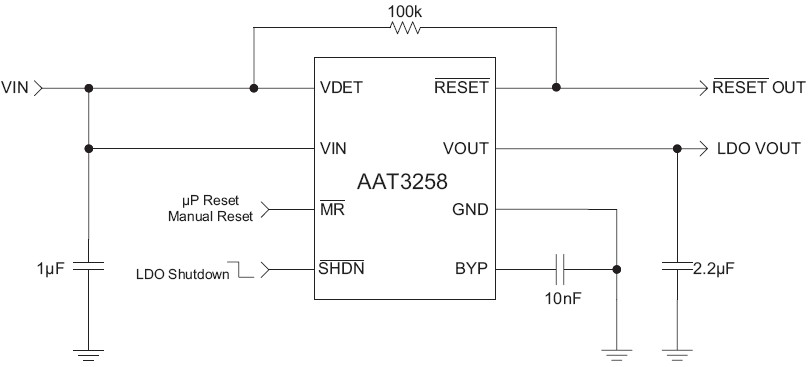

AAT3258 典型应用

AAT3258 典型应用
