AAT3685 Li-Ion/Polymer Battery Charger

The AAT3685 BatteryManager™ is a highly integrated single cell lithium-ion/polymer battery charger IC designed to operate with USB port or line adapter inputs. It requires the minimum number of external components. The AAT3685 precisely regulates battery charge voltage and current for 4.2V lithium-ion/polymer battery cells. Regardless of the type of input power source (USB or adapter), the AAT3685 can be programmed for two separate constant current charge levels up to 1A. An optional Charge Reduction Loop is built in to allow users to charge the battery with available current from the charge supply, while keeping the port voltage regulated. Battery temperature and charge state are fully monitored for fault conditions. In the event of an over-voltage or over-temperature failure, the device will automatically shut down, thus protecting the charging device, control system, and the battery under charge. Status monitor output pins are provided to indicate the battery charge status by directly driving two external LEDs. A serial interface output is available to report any one of 14 various status states to a microcontroller. The AAT3685 is available in a Pb-free, thermally-enhanced, space-saving 12-pin 3 × 3mm TDFN package and is rated over the -40°C to +85°C temperature range.

技术特性
  • Adapter or USB Charger
    ▪ Programmable up to 1A Max
  • 4.0V to 5.5V Input Voltage Range
  • High Level of Integration With Internal:
  • Charging Device
  • Reverse Blocking Diode
  • Current Sensing
  • Automatic Recharge Sequencing
  • Charge Reduction Loop
  • Battery Temperature Monitoring
  • Full Battery Charge Auto Turn-Off
  • Over-Voltage Protection
  • Emergency Thermal Protection
  • Power On Reset and Soft Start
  • Serial Interface Status Reporting
  • 12-Pin 3 × 3mm TDFN Package
订购信息 Ordering Information
  • AAT3685
应用领域 APPLICATION
  • Cellular Telephones
  • Digital Still Cameras
  • Hand-Held PCs
  • MP3 Players
  • Personal Data Assistants (PDAs)
  • Other Lithium-Ion/Polymer Battery-Powered Devices

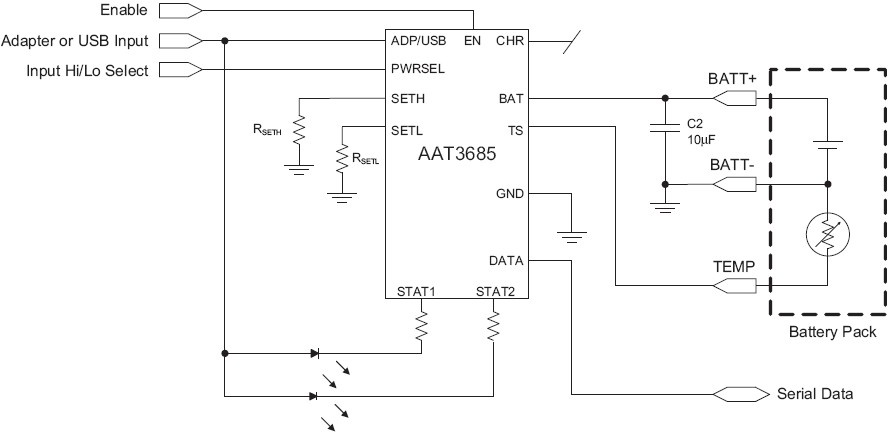

功能框图 Functional Block Diagram

AAT3685 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
AAT3685 数据资料DataSheet下载:pdf Rev.V2 2 页
