AAT3692 Dual Input 1.6A Linear Charger with 28V OVP in a 3x4 TDFN Package

The AAT3692 BatteryManager™ is an integrated single cell Lithium-Ion (Li-Ion) battery charger IC, designed to operate from USB ports, AC adapter inputs, or from a cellular phone charger adapter up to an input voltage of 7.2V typical. For increased safety, the AAT3692 also includes over-voltage input protection (OVP) up to 28V. The AAT3692 precisely regulates battery charge voltage and current for 4.2V Li-Ion battery cells. The charge current can be programmed up to 1.6A for ADP charging and 0.5A for USB charging by external resistors on the ADPSET/USBSET pins; the percentage of the termination charging current is programmable by an external resistor on the RTERM pin. In the case of an over-voltage condition of ADP or USB input power exceeding typical 7.2V, the internal series switch opens, blocking the damage to the battery and charging circuitry. The AAT3692 also includes a no-battery present input (NOBAT). When NOBAT indicates that no battery is present, the charging function will be suspended while OVP is still active. Battery charging status is continuously monitored for fault conditions. In the event of a battery over-voltage or chip over thermal failure, the charger will automatically suspend charging, protecting the charging device, control system and battery, until the fault condition is removed. An open drain POK pin indicates the valid input of AC adapter or USB power; an open drain status monitor output pin (STAT) is adopted to report battery charging activity by active low. The AAT3692 comes in a thermally enhanced, spacesaving, Pb-free 16-pin 3x4 mm TDFN package and is specified for operation over the -40°C to +85°C temperature range.

技术特性
  • Dual Input USB and AC Adapter Input
  • Programmable Constant Current from 100mA to
    1.6A for ADP Charge
  • Programmable Constant Current from 50mA to 0.5A
    for USB Charge
  • No Battery Present Input Detection
  • 3.0V ~ 7.2V (typical) Input Voltage Range
  • Over-Voltage Input Protection up to 28V
  • High Level of Integration with Internal:
  • Power Device
  • Reverse Current Blocking
  • Current Sensing
  • Automatic Recharge Sequencing
  • Automatic Charge Reduction
  • Programmable Charge Termination Current
    Percentage
  • Fast Over-Voltage Protection Turn Off and Release
    Turn On Time
  • Full Battery Charge Auto Turn Off/Sleep Mode/Charge
    Termination
  • Charge Status Indicator
  • Input Power Good Indicator
  • Automatic Trickle Charge for Battery Preconditioning
  • Thermal Shutdown Protection
  • Active Digital Thermal Loop Control
  • Power On Reset and Soft Start
  • Active Low Enable with Internal 200kΩ Resistor Pull-
    Down to GND
  • 3x4mm TDFN Package
订购信息 Ordering Information
  • AAT3692
应用领域 APPLICATION
  • Digital Still Cameras
  •  Mobile Phones
  •  Personal Data Assistants (PDAs)
  •  Other Li-Ion Battery Powered Devices

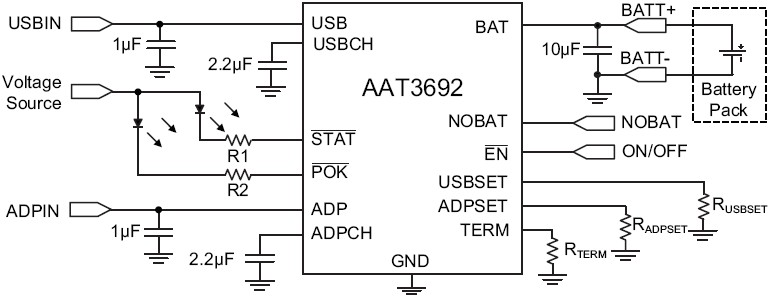

功能框图 Functional Block Diagram

AAT3692 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
AAT3692 数据资料DataSheet下载:pdf Rev.V2 2 页
