AAT4282B Slew Rate Controlled Load Switch

The AAT4282B SmartSwitch™ is a member of Skyworks' Application Specific Power MOSFET™ (ASPM™) product family. The AAT4282B is a dual P-channel MOSFET power switch designed for high-side load-switching applications. Each MOSFET has a typical RDS(ON) of 67m, allowing increased load switch current handling capacity with a low forward voltage drop. The AAT4282B offers a shutdown load discharge circuit to rapidly turn off a load circuit when the switch is disabled. A slew-rate selector pin can switch between fast and slow slew rate. The AAT4282B load switch operates from 1.5V up to 6.5V, making it ideal for both 3V and 5V systems. Input logic levels are TTL and 2.5V to 5V CMOS compatible. The quiescent supply current is a very low, less than 1μA. The AAT4282B is available in a Pb-free, low profile 2.0 × 2.0mm TDFN22-8 package and is specified over the -40°C to 85°C temperature range.

技术特性

VIN Range: 1.5V to 6.5V
Low RDS(ON)
67m Typical @ 5V
125m Typical @ 1.8V
Slew Rate Turn-On Time
750μs - Slow (FAST = Low)
65μs - Fast (FAST = High)
Fast Shutdown Load Discharge Option
Low Quiescent Current
40nA Typical
TTL/CMOS Input Logic Level
Temperature Range -40°C to 85°C
TDFN22-8 Package

订购信息 Ordering Information

AAT4282B

应用领域 APPLICATION

Cellular Telephones
Digital Still Cameras
Hotswap Supplies
Notebook Computers
PDA Phones
PDAs
PMPs
Smartphones

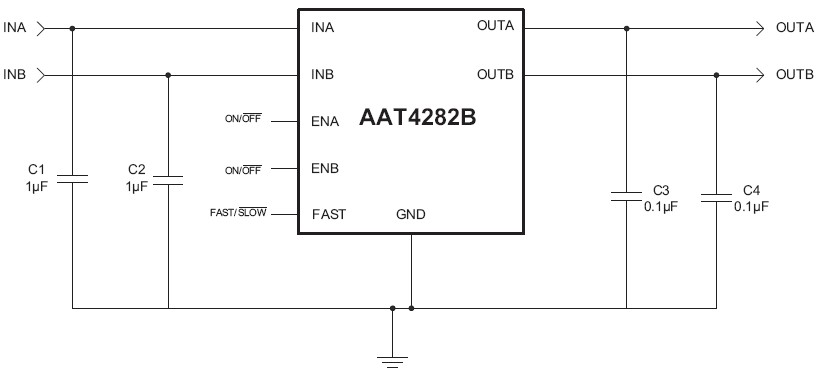

AAT4282B 典型应用

应用技术支持与电子电路设计开发资源下载	版本信息	大小
AAT4282B 数据资料DataSheet下载:pdf	Rev.V2	2 页
