AAT4285 12V Slew Rate Controlled Load Switch

The AAT4285 SmartSwitch is a P-channel MOSFET power switch designed for high-side load switching applications. The MOSFET operates from a 3.0V to 13.2V input range making it ideal for applications in single or dual cell Lithium-Ion battery systems. The device has a typical RDS(ON) of 240mW at 12V, allowing a low forward voltage drop and high current handling capability. The device is a slew rate limited turn-on load switch and is functionally compatible with the AAT4250 and AAT4280 products, while offering a high operating voltage. The AAT4285 features fast load switch turn-on capability of 100μs and offers a shutdown load discharge circuit to rapidly turn off a load circuit when the switch is disabled. The quiescent supply current is very low, typically 25μA. The AAT4285 is available in a Pb-free, 8-pin SC70JW package and is specified over the -40°C to +85°C temperature range.

技术特性

VIN Range: 3.0V to 13.2V
Low RDS(ON)
240mW Typical @ 12V
310mW Typical at 5V
100μs Slew Rate Turn-on Time
Fast Shutdown Load Discharge
Low Quiescent Current
Typically 25μA
1μA Maximum in Shutdown
TTL/CMOS Input Logic Level
Temperature Range: -40°C to +85°C
8-pin SC70JW Package

订购信息 Ordering Information

AAT4285

应用领域 APPLICATION

2 Cell Lithium-Ion Batteries
Camcorders
Handheld Test Equipment
Load Switching

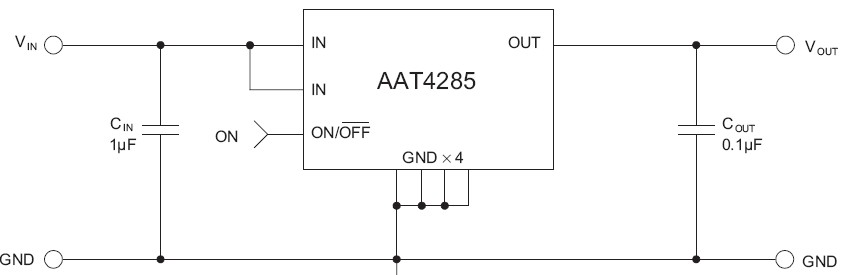

AAT4285 典型应用

应用技术支持与电子电路设计开发资源下载	版本信息	大小
AAT4285 数据资料DataSheet下载:pdf	Rev.V2	2 页
