AAT4291 I/O Expander Load Switches with Serial Control

The AAT4290 and AAT4291 SmartSwitch products are members of Skyworks' Application Specific Power MOSFET (ASPM™) product family. The AAT4290 and AAT4291 are five and three P-channel MOSFETs, respectively, configured for use as a microprocessor I/O expander. Having independent drain outputs and a common source input, they operate with an input voltage ranging from 1.8V to 5.5V, making them ideal for 2.5V, 3.3V, or 5V systems, as well as systems powered by lithium-ion/polymer batteries. Each switch features a 500ns turn-on time. The switch states are controlled by Skyworks' Simple Serial Control (S2Cwire™) interface which permits ease of control and efficiency of size. The quiescent supply current is very low, typically 4.5μA. In shutdown mode, the supply current is reduced to less than 1μA. The AAT4290 and AAT4291 are offered in a Pb-free, 8-pin SC70JW package specified over the -40°C to +85°C temperature range.

技术特性

1.8V to 5.5V Input Voltage Range
5 or 3 Independent Load Switches
S2Cwire Interface
1.1W RDS(ON) Per Switch
Low Quiescent Current
4.5μA Typical
0.1μA in Shutdown
-40°C to +85°C Temperature Range
8-Pin SC70JW Package

订购信息 Ordering Information

AAT4291

应用领域 APPLICATION

Cell Phones
I/O Expansion
Multiple Low Power Switching
Personal Communication Devices
Portable Electronic Devices

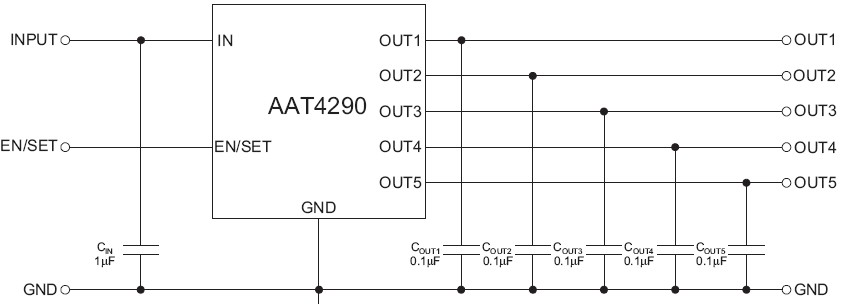

AAT4291 典型应用

应用技术支持与电子电路设计开发资源下载	版本信息	大小
AAT4291 数据资料DataSheet下载:pdf	Rev.V2	2 页
