AAT4601A 1.8A Current Limited P-Channel Switch

The AAT4601A SmartSwitch is a member of Skyworks' Application Specific Power MOSFET™ (ASPM™) product family. It is a 1.8A current limited P-channel MOSFET power switch designed for high-side load switching applications. This switch operates with inputs ranging from 2.7V to 5.5V, making it ideal for both 3V and 5V systems. An integrated current-limiting circuit protects the input supply against large changes in load current which could cause the supply to fall out of regulation. The AAT4601A has protection from thermal overload which limits power dissipation and junction temperatures. The maximum current limit level will guarantee that 1.8A can be delivered to the load; the actual threshold is programmed with a resistor from the SET pin to ground. The quiescent supply current is typically 12μA. In shutdown mode, the supply current decreases to less than 1μA. The AAT4601A is available in a Pb-free, 8-pin SOP package and is specified over the -40°C to +85°C temperature range.

技术特性
  • Input Voltage: 2.7V to 5.5V
  • Programmable Over-Current Threshold
  • Low Quiescent Current
  • 12μA Typical
  • Less Than 1μA with Switch Off
  • Only 2.5V Needed for ON Control
  • Thermal Shutdown
  • Fault Flag
  • 2ms Fault Blanking
  • Under-Voltage Lockout
  • Temperature Range: -40°C to +85°C
  • 4kV ESD Rating
  • UL Approved—File No. E217765
  • 8-Pin SOP Package
订购信息 Ordering Information
  • AAT4601A
应用领域 APPLICATION
  • Hot Swap Supplies
  • Notebook Computers
  • Peripheral Ports
  • USB Ports

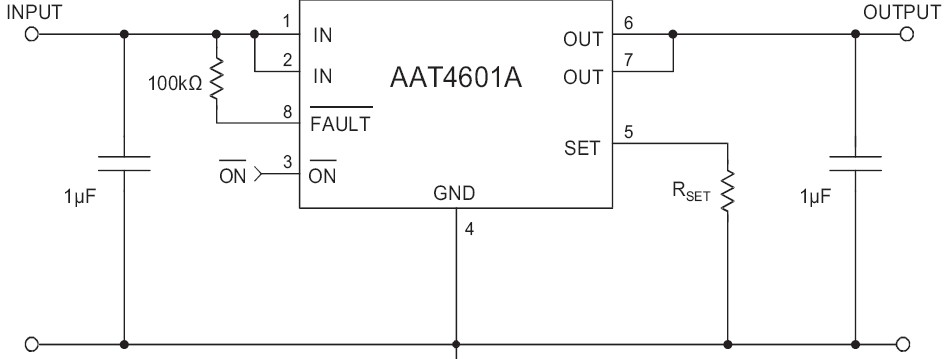

AAT4601A 典型应用

AAT4601A 典型应用

应用技术支持与电子电路设计开发资源下载 版本信息 大小
AAT4601A 数据资料DataSheet下载:pdf Rev.V2 2 页
