AAT4608 Current Limited Load Switch in a SOT23 Package

The AAT4608 SmartSwitch is a member of Skyworks' Application Specific Power MOSFET™ (ASPM™) product family. It is a current limited P-channel MOSFET power switch designed for high-side load switching applications. This switch operates with inputs ranging from 2.7V to 5.5V, making it ideal for both 3V and 5V systems. An integrated current-limiting circuit protects the input supply against large currents which may cause the supply to fall out of regulation. The AAT4608 is also protected from thermal overload which limits power dissipation and junction temperatures. It can be used to control loads that require up to 1A. Current limit threshold is programmed with a resistor from SET to ground. The quiescent supply current is typically a low 15μA max. The AAT4608 is available in a Pb-free, 5-pin SOT23 package, and is specified over the -40°C to +85°C temperature range.

技术特性

2.7V to 5.5V Input Voltage Range
Programmable Over-Current Threshold
Fast Transient Response:
<1μs Response to Short Circuit
Low Quiescent Current
15μA Typical
1μA Max With Switch Off
160m Typical RDS(ON)
Under-Voltage Lockout
Thermal Shutdown
Temperature Range: -40°C to +85°C
4kV ESD Rating
5-Pin SOT23 Package

订购信息 Ordering Information

AAT4608

应用领域 APPLICATION

Hot Swap Supplies
Notebook Computers
Peripheral Ports
Personal Communication Devices

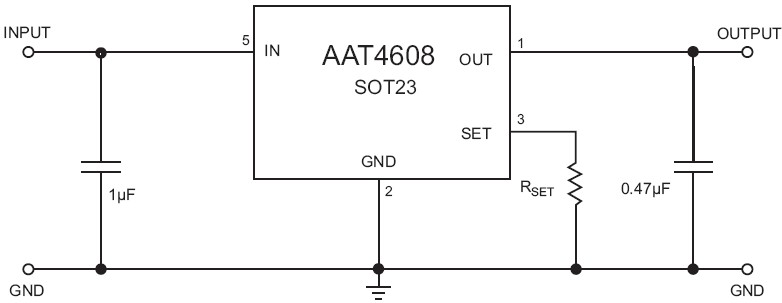

AAT4608 典型应用

应用技术支持与电子电路设计开发资源下载	版本信息	大小
AAT4608 数据资料DataSheet下载:pdf	Rev.V2	2 页
