AAT4670 Dual-Input, Dual-Output Load Switch
The AAT4670 SmartSwitch is a member of Skyworks’ Application Specific Power MOSFET™ (ASPM™) product family. The AAT4670 consists of dual, independent, 1A current limited, slew rate controlled P-channel MOSFET power switches with a dedicated source and drain pin assigned to each switch. The internal circuitry automatically derives power from the higher of the two input power source pins with a low operating quiescent current of 18μA. In shutdown mode, the supply current decreases to less than 1μA. The switches operate with inputs ranging from 2.2V to 5.5V, making them ideal for 2.5V, 3V, and 5V systems. The dual configuration permits integration of the load switch function for systems with two different power busses. Independent under-voltage lockout circuits will shut down the corresponding switch if its input voltage falls below the under-voltage lockout threshold. If the die temperature reaches the thermal limit, both switches thermal cycle off and on indefinitely without damage until the thermal condition is removed. An open drain FAULT output signals an over-current or over-temperature condition for each channel. Input logic levels are TTL compatible. The AAT4670 is available in a Pb-free, 8-pin SOP package and is specified over the -40°C to +85°C temperature range.
技术特性
订购信息 Ordering Information
|
应用领域 APPLICATION

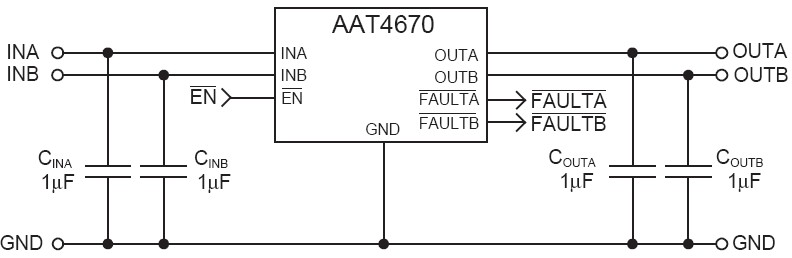

AAT4670 典型应用
|
| 应用技术支持与电子电路设计开发资源下载 | 版本信息 | 大小 |
| AAT4670 数据资料DataSheet下载:pdf | Rev.V2 | 2 页 |
