AAT4684 Over-Voltage Protection Switch

The AAT4684 OVPSwitch™ is a member of Skyworks' Application Specific Power MOSFET™ (ASPM™) product family. It is a P-channel MOSFET power switch with precise over-voltage protection control, designed to protect low-voltage systems against high-voltage faults up to +28V. If the input voltage exceeds the programmed over-voltage threshold, the P-channel MOSFET switch will be turned off to prevent damage to the output load circuits. The AAT4684 is available with an internally programmed over-voltage trip point or as an adjustable version programmed by two external resistors. The AAT4684 also includes an under-voltage lockout (UVLO) protection circuit, which will put the device into sleep mode at low input voltages only consuming < 1μA of current. The AAT4684 is offered in a small Pb-free, 12-pin TSOPJW package and is specified for operation over the -40°C to +85°C ambient temperature range.

技术特性

Over-Voltage Protection Up to +28V
Fixed or Adjustable Over-Voltage Protection Threshold
3V Under-Voltage Lockout Threshold
Fast OVP Response: 1μs (Max) to Over-Voltage Transient
• Low Operation Quiescent Current
30μA Typical
1μA Max in Shutdown (Disabled)
100m Typical (130m max) RDS(ON) at 4.5V
1.8A Maximum Continuous Current
Temperature Range: -40°C to 85°C
Available in TSOPJW-12 Package

订购信息 Ordering Information

AAT4684

应用领域 APPLICATION

Cell Phones
Digital Still Cameras
GPS
MP3 Players
Personal Data Assistants (PDAs)
USB Hot Swap/Live Insertion Device

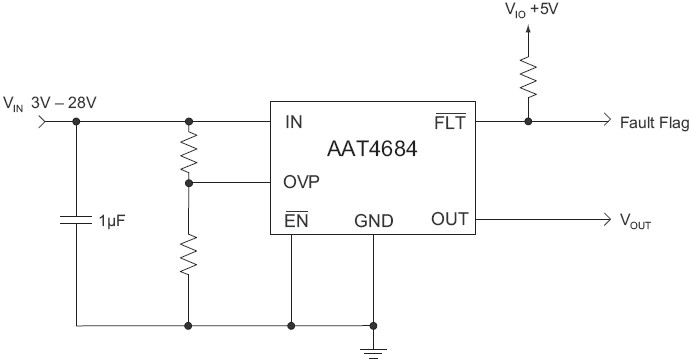

AAT4684 典型应用
