AAT4686 MOSFET Driver IC with Over-Voltage Protection

The AAT4686 OVPSwitch™ is a member of AnalogicTech’s Application Specific Power MOSFET™ (ASPM™) product family. It is a P-channel MOSFET driver IC with precise over-voltage protection control, designed to protect lowvoltage systems against high-voltage faults up to +28V. If the input voltage exceeds the programmed over-voltage threshold, the external P-channel MOSFET switch will be turned off to prevent damage to the output load circuits. The AAT4686 is available with an internally programmed over-voltage trip point or as an adjustable version programmed by a two external resistors. The AAT4686 also includes an under-voltage lockout (UVLO) protection circuit, which will put the device into sleep mode at low input voltages only consuming < 1μA of current. The AAT4686 is offered in a small Pb-free, 8-pin SC70JW package, and is specified for operation over the -40°C to +85°C ambient temperature range.

技术特性

Over-Voltage Protection up to 28V
(Fixed or Adjustable) Over-Voltage Protection Threshold
Fast OVP Response:
1 μs (Max) to Over-Voltage Transient
Low Operation Quiescent Current
30μA Typical
1μA Max in Shutdown (Disabled)
Drives External P-Channel MOSFETs
Under-Voltage Lockout
Temperature Range: -40 to 85°C
Available in SC70JW-8 Package

订购信息 Ordering Information

AAT4686

应用领域 APPLICATION

Cell Phones
Digital Still Cameras
GPS
MP3 Players
Personal Data Assistants (PDA)
USB Hot Swap / Live Insertion Devices

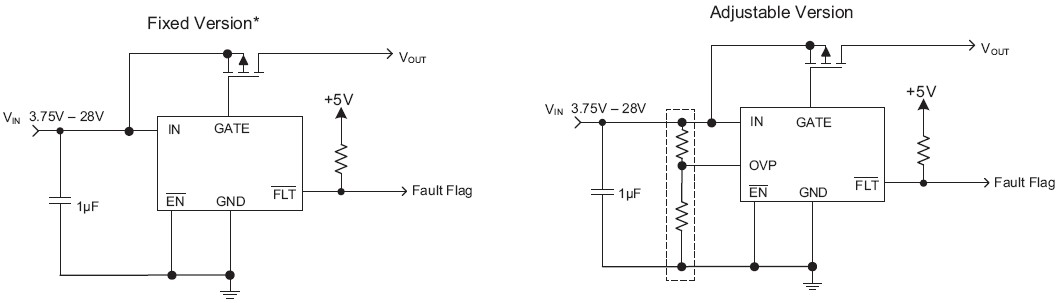

AAT4686 典型应用
