AAT4901 Buffered Power Half Bridge

The AAT4901 FastSwitch™ is a member of Skyworks' Application Specific Power MOSFET (ASPM™) product family. It is a full-bridge buffered power stage operating with an input voltage range of 2.0V to 5.5V. The device is designed to operate with a switching frequency of up to 2MHz, minimizing the cost and size of external components. The AAT4901 is protected from shoot-through current by integrated break-before-make circuitry. The drivers can be independently controlled and their propagation delay, from input to output, is typically between 8ns-19ns dependent upon logic option. Four options are offered providing a single input control, dual input control or as two independent half-bridges. Other features include low RDS(ON) and low quiescent current allowing for high efficiency performance. The AAT4901 includes thermal protection to safeguard the device under extreme operating conditions. The AAT4901 is available in the space-saving, Pb-free 8-pin SC70JW package and is rated over the -40°C to +85°C temperature range.

技术特性
  • VIN Range: 2.0V–5.5V
  • RDS(ON):
     High-side 240mΩ
     Low-side 200mΩ
  • Break-Before-Make Shoot–Through Protection
  • 4 Options
     Single Control Input with Enable
  • Two Logic Versions
     Dual Control Input with Brake Function
     Dual Half-bridge
  • Low Quiescent Current:
     10μA (max) DC
     5mA (max) at 1MHz
  • Over-Temperature Protection
  • -40°C to +85°C Temperature Range
  • SC70JW-8 Package
应用领域 APPLICATION
  • DC Motor Drive
  • High Frequency DC/DC Converters
  • MOSFET Driver
订购信息 Ordering Information
  • AAT4901

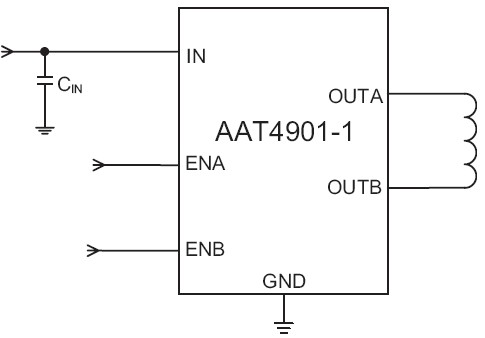

AAT4901 典型应用

AAT4901 典型应用
