APD_Series Silicon PIN Diodes, Packaged and Bondable Chips

SKYWORKS APD series of silicon PIN diodes are designed for use as switch and attenuator devices in high-performance RF and microwave circuits. The PIN diode designs are useful over a wide range of frequencies from below 100 MHz to beyond 30 GHz. These devices use SKYWORKS well-established silicon technology resulting in PIN diodes with tightly controlled I-region characteristics. Devices APD0505-000 through APD0810-000 are designed for fast speed through moderate speed switch applications. They have low resistance and capacitance at zero and reverse bias. The thick I-region APD2220-000 is designed for low-distortion attenuator applications.

技术特性

Established SKYWORKS PIN diode process
Low capacitance designs to 0.05 pF
Voltage ratings to 200 V
Chip size < 15 mils square
Tight control of I layer base width
Mesa and planar chip designs

应用领域 APPLICATION

Switches
Attenuators

订购信息 Ordering Information

APD_Series

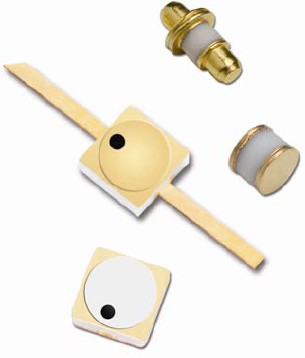

APD_Series 实物图

应用技术支持与电子电路设计开发资源下载	版本信息	大小
APD_Series 数据资料DataSheet下载:pdf	Rev.V2	2 页
