技术特性

• Positive voltage control (0/3 to 0/5 V)

• High isolation (55 dB @ 0.9 GHz and 1.9 GHz)

• Miniature MSOP-8 exposed pad package

• Three-switch solution for base station synthesizer switch

• Nonreflective

• Operation to 6 GHz

• Available lead (Pb)-free and RoHS-compliant MSL-1 @ 260 °C
  per JEDEC J-STD-020

订购信息 Ordering Information

• AS186-302LF

应用领域 APPLICATION

• Typical applications include GSM, PCS, WCDMA, 2.4 GHz ISM
  and 3.5 GHz wireless local loop

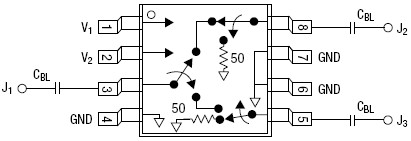

AS186-302LF 引脚定义
