AS214-92LF PHEMT GaAs IC SPDT Switch 0.1–3 GHz

The AS214-92 is a medium-power IC FET SPDT switch in a lowcost miniature SC-70 6-lead plastic package. The AS214-92 features low insertion loss and positive voltage operation with very low DC power consumption. This general purpose switch can be used in a variety of telecommunications applications.

技术特性
  • Low insertion loss (0.4 dB @ 2.4 GHz)
  • Isolation 26 dB @ 2.4 GHz
  • Low DC power consumption
  • PHEMT process
  • Operates at 1.8 V control voltage
  • Available lead (Pb)-free and RoHS-compliant MSL-1 @ 260 °C
    per JEDEC J-STD-020
订购信息 Ordering Information
  • AS214-92LF
应用领域 APPLICATION
  • T/R switch in WLANs, BluetoothTM and medium-power
    telecommunication applications

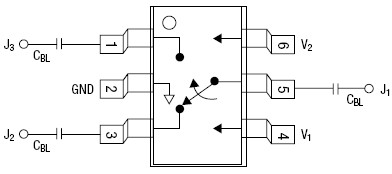

引脚定义

AS214-92LF 引脚定义

应用技术支持与电子电路设计开发资源下载 版本信息 大小
AS214-92LF 数据资料DataSheet下载:pdf Rev.V2 2 页
