AS219-321LF PHEMT GaAs IC High-Linearity 3 V T/R SP3T Switch 0.1–2.5 GHz

The AS219-321 is a PHEMT GaAs IC SP3T antenna switch operating in the 900 MHz and 1800 MHz frequency bands. Switching between the antenna and Tx/Rx ports is accomplished with three control inputs. When the control inputs are driven with the appropriate voltages, a low insertion loss path is provided from an antenna port to a Tx port, while the other Rx ports have high attenuation.

技术特性
  • 2.6 to 5 V linear operation
  • Harmonics H2, H3 < -70 dBc @ PIN = 34.5 dBm
  • Low Tx insertion loss (0.35 dB @ 0.9 GHz)
  • High Rx isolation (25 dB @ 0.9 GHz)
  • Miniature QFN-12 plastic package
  • PHEMT process
  • Available lead (Pb)-free and RoHS-compliant MSL-1 @ 260 °C
    per JEDEC J-STD-020
订购信息 Ordering Information
  • AS219-321LF
  • AA102-80
引脚定义

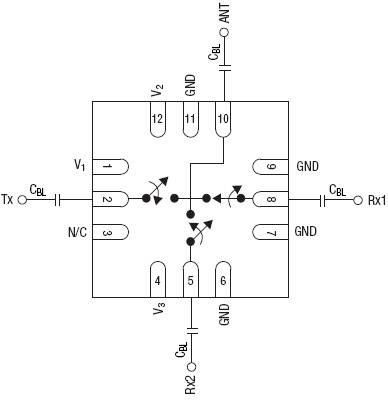

AS219-321LF 引脚定义
应用技术支持与电子电路设计开发资源下载 版本信息 大小
AS219-321LF 数据资料DataSheet下载:pdf Rev.V2 2 页
