AS225-313LF PHEMT GaAs IC 1 W Low Loss 0.1–6 GHz SPDT Switch

The AS225-313 is a 0.1–6 GHz PHEMT GaAs IC SPDT antenna switch. Designed for WLAN applications, this device is capable of switching 1 W microwave signals with 3 V control voltage while maintaining high-linearity performance. The switch covers the entire 802.11a, b and g frequency ranges. The low-loss, highisolation, high-inearity and low-cost features make this switch ideal for Wireless LAN systems.

技术特性
  • Positive low voltage control (0/3 V)
  • Low insertion loss (0.6 dB, 0.1–6 GHz)
  • High linearity (IIP3 = 53 dBm @ 3 V)
  • Miniature QFN-6 pin plastic package (2 mm x 3 mm)
  • PHEMT process
  • Available lead (Pb)-free and RoHS-compliant MSL-1 @ 260 °C per
    JEDEC J-STD-020
订购信息 Ordering Information
  • AS225-313LF
应用领域 APPLICATION
  • WLAN 802.11a, b, g

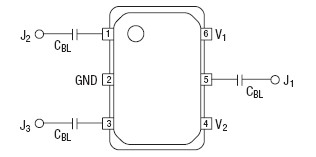

引脚定义

AS225-313LF 引脚定义
应用技术支持与电子电路设计开发资源下载 版本信息 大小
AS225-313LF 数据资料DataSheet下载:pdf Rev.V2 2 页
