AV101-12LF HIP3™ Variable Attenuator 0.7–1 GHz

The AV101-12LF is a GaAs pHEMT two-bit attenuator I/C. The device is provided in a 3 x 3 mm 12-pin Quad Flat No-Lead (QFN) package. The AV101-12LF is The AV101-12 is a current controlled, variable attenuator from SKYWORKS series of HIP3™ components. It is designed to meet the wide dynamic range required in spread spectrum, wireless base station applications. A monolithic quadrature hybrid is teamed with a silicon PIN diode pair in a plastic surface mount package, reducing size and assuring consistency from part to part.

技术特性

50 dBm IP3 typical
Low loss 1 dB typical
Attenuation 30 dB typical
Good VSWR <1.5:1 typical
Small SOIC-8 package
Available lead (Pb)-free, RoHS-compliant MSL-1 @ 260 °C per JEDEC J-STD-020

订购信息 Ordering Information

AV101-12LF

应用领域 APPLICATION

Cellular/3G infrastructure
IF/RF systems

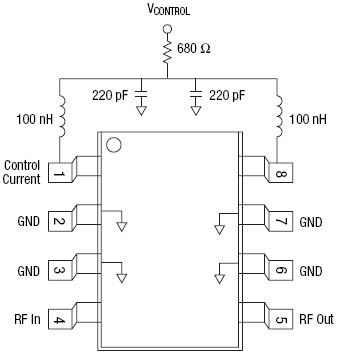

Pin Out

应用技术支持与电子电路设计开发资源下载	版本信息	大小
AV101-12LF 数据资料DataSheet下载:pdf	Rev.V2	2 页
