AV102-12LF HIP3™ Variable Attenuator 1.7–2 GHz
The AV102-12 is a current controlled, variable attenuator from SKYWORKS series of HIP3™ components. It is designed to meet the wide dynamic range required in spread spectrum, wireless base station applications. A monolithic quadrature hybrid is teamed with a silicon PIN diode pair in a plastic surface mount package reducing size and assuring consistency from part to part.
技术特性
订购信息 Ordering Information
|

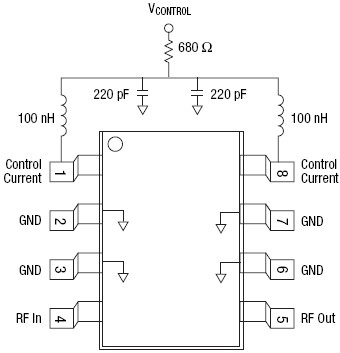

Pin Out
|
| 应用技术支持与电子电路设计开发资源下载 | 版本信息 | 大小 |
| AV102-12LF 数据资料DataSheet下载:pdf | Rev.V2 | 2 页 |
