CDC7630/7631 and DDC2353/2354 Series: Zero Bias Silicon Schottky Barrier Detector Diodes
SKYWORKS packaged, beam-lead and zero-bias Schottky barrier detector diodes are designed for applications through the K band. The choice of barrier metal and process techniques results in a group of diodes with a wide selection of video impedance ranges. Packaged diodes are suitable for use in waveguide, coaxial, and stripline applications. Beam-lead and chip diodes can also be mounted in a variety of packages. The CDC and DDC series of Schottky diodes are especially well suited for use in Microwave Integrated Circuit (MIC) applications where the chip and wire approach is more desirable. Mounted beam-lead diodes can be easily used in MIC, stripline, or other such circuitry.
技术特性
应用领域 APPLICATION
订购信息 Ordering Information
|

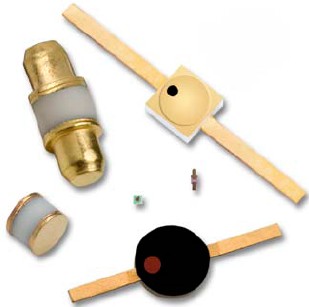

CDC7630_7631 实物图
|
| 应用技术支持与电子电路设计开发资源下载 | 版本信息 | 大小 |
| CDC7630_7631 数据资料DataSheet下载:pdf | Rev.V2 | 2 页 |
