CLA4605-085LF Surface Mount Limiter Diode

The CLA4605-085LF is a surface mountable, low capacitance silicon PIN limiter diode designed as a shunt connected PIN diode for high power limiter applications from 10 MHz to over 6 GHz. Maximum resistance at 10 mA is 2 Ω and maximum capacitance at 6 V is 0.45 pF. The combination of low junction capacitance, low parasitic inductance, low thermal resistance, and nominal 2 μm I-region width, makes the CLA4605-085LF useful in large signal limiter applications. The threshold level is +9 dBm, nominal.

技术特性
  • Low thermal resistance: 91 °C/W
  • Typical threshold level: +9 dBm
  • Low capacitance: 0.32 pF
  • Low profile, ultra-miniature QFN (3-pin, 2 x 2 mm) package (MSL1, 260 °C per JEDEC J-STD-020)
应用领域 APPLICATION
  • Low loss, high power limiters
  • Receiver protectors
订购信息 Ordering Information
  • CLA4605-085LF
功能框图 Functional Block Diagram

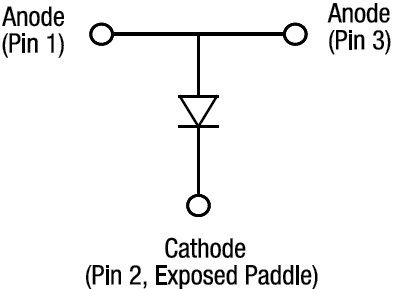

CLA4605-085LF 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
CLA4605-085LF 数据资料DataSheet下载:pdf Rev.V2 2 页
