CLA4609-086LF Surface Mount Limiter Diode

The CLA4609-086LF is a surface mountable, low capacitance silicon PIN limiter diode designed as a shunt connected PIN diode for high power limiter applications from 10 MHz to over 6 GHz. Maximum resistance at 100 mA is 1.5 Ω and maximum capacitance at 30 V is 0.6 pF. The combination of low junction capacitance, low parasitic inductance, low thermal resistance, and nominal 28 μm I-region width, makes the CLA4609-086LF useful in large signal limiter applications. The threshold level is +36 dBm, nominal.

技术特性

Low thermal resistance: 25 °C/W
Typical threshold level: +36 dBm
Low capacitance: 0.6 pF
Low profile, ultra-miniature QFN (3-pin, 2 x 2 mm) package (MSL1, 260 °C per JEDEC J-STD-020)

应用领域 APPLICATION

Low loss, high power limiters
Receiver protectors

订购信息 Ordering Information

CLA4609-086LF

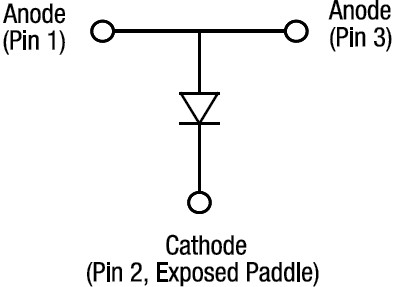

功能框图 Functional Block Diagram

应用技术支持与电子电路设计开发资源下载	版本信息	大小
CLA4609-086LF 数据资料DataSheet下载:pdf	Rev.V2	2 页
