DME_DMF_DMJ_Series Silicon Beam-Lead Schottky Mixer Diodes – Singles, Pairs & Quads, Bondable & Packaged Chips

SKYWORKS beam-lead silicon Schottky barrier mixer diodes are designed for applications through 40 GHz. The beam-lead design reduces the problem of bonding to the very small area characteristic of low capacitance junctions. Beam-lead Schottky barrier mixer diodes are made by the deposition of a suitable barrier metal on an epitaxial silicon substrate to form the junction. The process and choice of materials result in low series resistance with a narrow spread of capacitance values for close impedance control. A variety of forward voltages are available ranging from low values for low, or starved, local oscillator drive levels to high values for high drive, low distortion mixer applications. Beam-lead diodes are available in a wide range of packages. Capacitance ranges and series resistances are comparable with the packaged devices that are available up to, and including, the Ka-band. Unpackaged diodes are well suited for use in Microwave Integrated Circuits (MICs). The packaged devices are designed to be inserted as hybrid elements in strip, transmission line applications.

技术特性
  • Low 1/f noise
  • Low intermodulation distortion
  • Epoxy and hermetically sealed packages
  • Statistical Process Control wafer fabrication
  • Packages rated MSL1, 260 􀁱C per JEDEC J-STD-020)
应用领域 APPLICATION
  • Microwave Integrated Circuits
  • Mixers
  • Detectors
订购信息 Ordering Information
  • DME_DMF_DMJ_Series

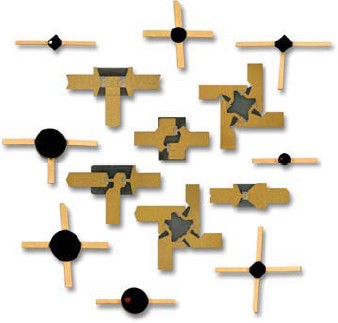

DME_DMF_DMJ_Series 实物图

DME_DMF_DMJ_Series 实物图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
DME_DMF_DMJ_Series 数据资料DataSheet下载:pdf Rev.V2 2 页
