MAFR-000569-000001 925-960 MHz Single Junction Robust Lead Circulator

The MAFR-000569-000001 is a single-junction circulator designed for wireless infrastructure applications. It operates over the frequency range of 925 MHz to 960 MHz. Insertion loss is less than 0.45 dB over an operating temperature range of –40 °C to +125 °C. The MAFR-000569-000001 comes in an industry-standard surface mount package and is designed for automated SMT placement.

技术特性
  • BeO free
  • Small, surface mount package
  • Operating frequency range: 925 MHz to 960 MHz
  • Insertion loss: 0.25 dB
  • Isolation: 20 dB
  • Return loss: 20 dB
  • Parts delivered on tape and reel

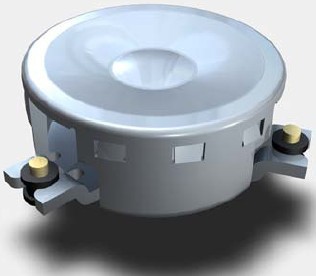

MAFR-000569-000001 实物图

MAFR-000569-000001 实物图

应用领域 APPLICATION
  • GSM systems
  • Wireless infrastructure
订购信息 Ordering Information
  • MAFR-000569-000001

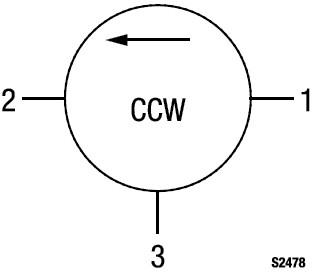

功能框图 Functional Block Diagram

MAFR-000569-000001 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
MAFR-000569-000001 数据资料DataSheet下载:pdf Rev.V2 2 页
