MAFR-000630-000001 925-960 MHz Single Junction Drop-In Circulator

The MAFR-000630-000001 is a single-junction circulator designed for wireless infrastructure applications. It operates over the frequency range of 925 MHz to 960 MHz. Third Order Intermodulation Distortion (IMD3) is an excellent –80 dBc (2 × 65 W CW tones, 1 MHz spacing). Insertion loss is less than 0.25 dB over an operating temperature range of –40 °C to +90 °C. The MAFR-000630-000001 comes in an industry-standard package designed for drop-in assembly.

技术特性
  • BeO free
  • Operating frequency range: 925 MHz to 960 MHz
  • Insertion loss: 0.25 dB
  • Isolation: 20 dB
  • Return loss: 20 dB
  • IMD3 (2 × 65 W CW tones, 1 MHz spacing): –80 dBc

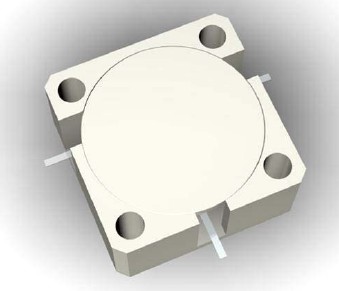

MAFR-000630-000001 实物图

MAFR-000630-000001 实物图

应用领域 APPLICATION
  • Wireless infrastructure
订购信息 Ordering Information
  • MAFR-000630-000001

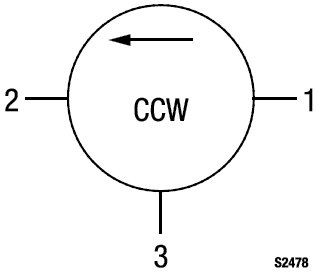

功能框图 Functional Block Diagram

MAFR-000630-000001 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
MAFR-000630-000001 数据资料DataSheet下载:pdf Rev.V2 2 页
